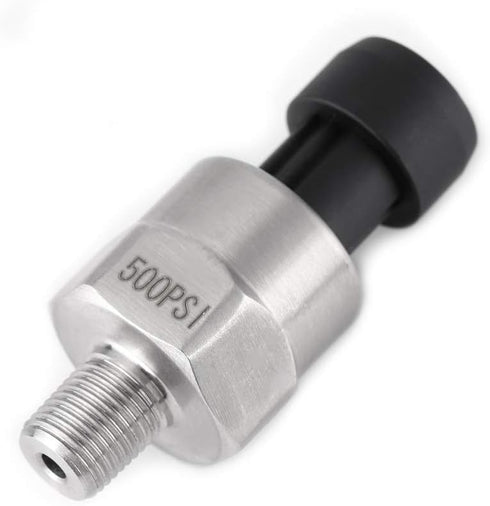

Pressure Transducer Sender Sensor, Pack of 2, 1/8NPT Thread Stainless Steel for Oil Fuel Air Water (500PSI)

Pressure Transducer Sender Sensor, 1/8NPT Thread Stainless Steel Pressure Transducer for Oil Fuel Air Water Pack of 2(500PSI)

Pressure Transducer Sender Sensor, Pack of 2, 1/8NPT Thread Stainless Steel for Oil Fuel Air Water (500PSI)

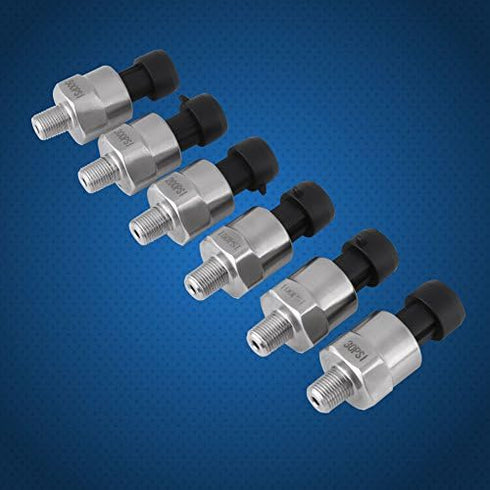

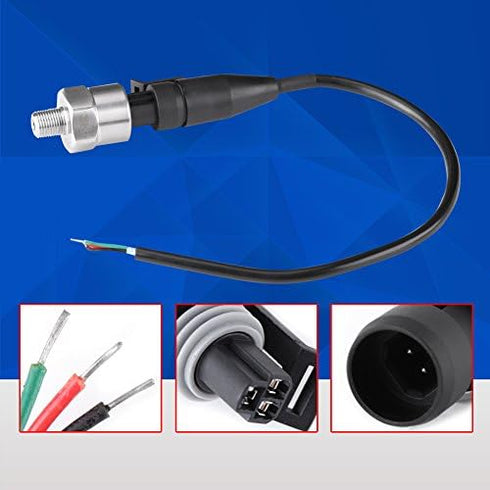

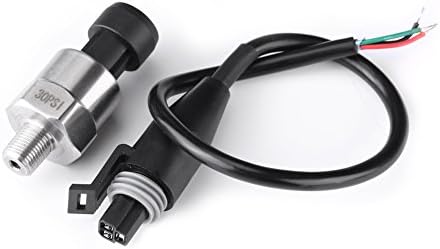

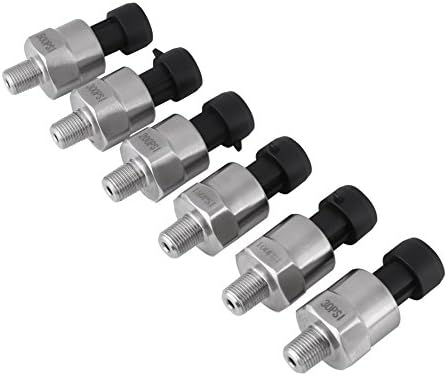

Specifications: Material: Stainless steel Voltage: DC 5V Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional) Thread Type: 1/8" NPT 500 psi Input: 0-500 psi (Gauge Pressure) Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, and 500 psi outputs 4.5V. Accuracy: +/-1%FS Thread: 1/8" NPT Wiring: Red for +5V; Black for ground; Yellow (Green) for signal output Overload Capacity: 2-4 times of rated pressure Working Temperature: -40~+120 Compensation Temperature: 0~+80 Protection Class: IP67 Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel Load Resistance: (supply power-6.5V/0.02A)O Long-term stability: Less than 0.1%FS/year Temperature Effect on Zero: Typical: 0.02%FS/; Maximum: 0.05%FS/ Temperature Effect on Sensitivity: Typical: 0.02%FS/; Maximum:0.05%FS/ Shock Resistance: 1000g Anti-Shock: +/-0.01%FS(X,Y,Z axes, 200Hz/g) Response Time: 1ms Insulation Resistance: >100mO 500VDC Explosion-proof Class: ExiaTTCT6 Electromagnetism Compatibility: EN50051-1. Package Includes: 2x Pressure Transducer (With cable)

Key Features

• ✅ Accuracy: Pressure transducer sender sensors are considered more advanced than traditional mechanical pressure transducers because they have a small output error of only ±2%FS, which includes nonlinear, hysteresis error and repeatability over the full range of operating temperatures. This makes them highly accurate and precise.
• ✅ Easy to Install: Pressure transducer sender sensors are easy to install and use due to their simple design. They are user-friendly and require minimal setup time before operation.
• ✅ Versatility: These sensors work for oil, fuel, diesel, gas, water, air pressure, and can be used in oil tanks, gas tanks, diesel tanks, and other types of tanks. They are widely used in a variety of industrial and commercial applications due to their versatility and reliability.
• ✅ Voltage Protection: The complete surge voltage protection function of these sensors ensures that they are safe and reliable to use in different applications. They are built to withstand voltage surges without being damaged or malfunctioning.

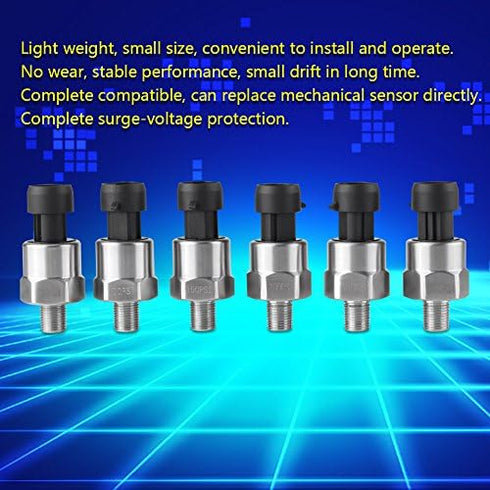

• ✅ Size and Weight: These sensors are lightweight and small in size, making them convenient to install and operate. They are designed to be compact and efficient, and can be easily integrated into different systems.

✅ Product Dimensions: 0.39 x 0.39 x 0.39 inches

✅ Color: 500PSI
