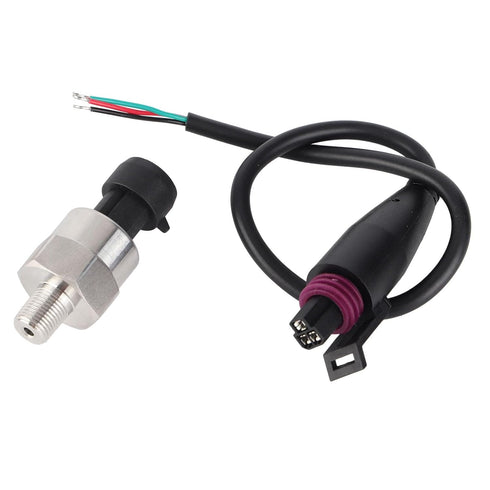

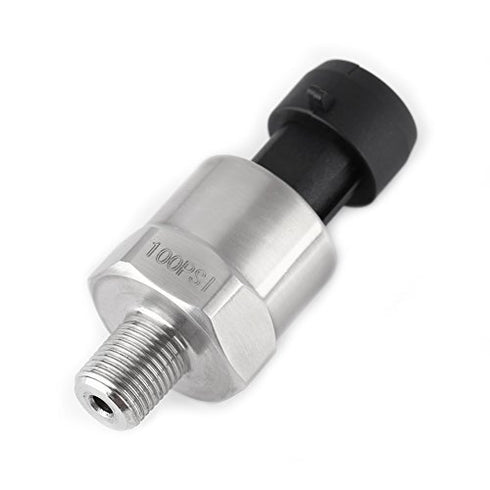

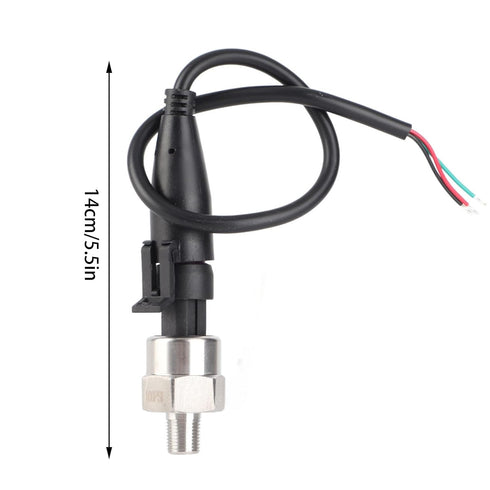

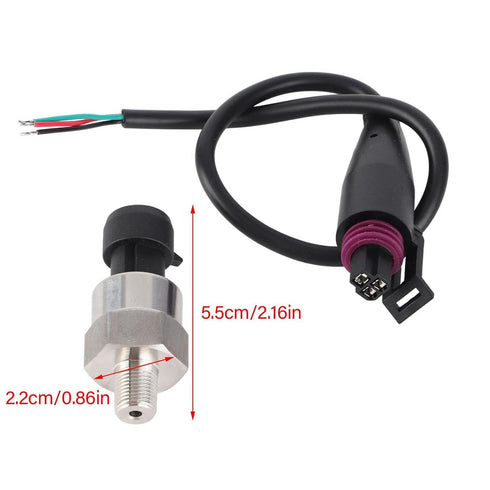

Pressure Transducer Sender Sensor for Oil Fuel Air Water, 1/8" NPT Thread Stainless Steel, 100 PSI

Pressure Transducer Sender Sensor Pressure Sensor for Oil Fuel Air Water, 1/8" NPT Thread Stainless Steel (100 PSI)

Pressure Transducer Sender Sensor for Oil Fuel Air Water, 1/8" NPT Thread Stainless Steel, 100 PSI

Water Pressure Transducer Input: 0-30 psi Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V. Accuracy: within 2% of reading (full scale). Thread: 1/8"-27 NPT. Wiring Connector: Water sealed quick disconnect. Mating connector is included. Wiring: Red for +5V; Black for ground; Blue for signal output. Input: 0-100 psi Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V. Accuracy: within 2% of reading (full scale). Thread: 1/8"-27 NPT Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included. Wiring: Red for +5V; Black for ground; Blue for signal output. Input: 0-150 psi Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V Accuracy: +/-0.5%FS Thread: 1/8" NPT Wiring: Red for +5V; Black for ground; Green for signal output Overload Capacity: 2-4 times of rated pressure Working Temperature: -40?~+120? Compensation Temperature: 0?~+80? Protection Class: IP67 Input: 0-200 psi Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, and 200 psi outputs 4.5V Working Temperature: -40~+125? Accuracy: ±1%FS Thread: 1/8"-27 NPT Overload Capacity: 2 times of rated pressure Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel Load Resistance: =(supply power-6.5V/0.02A)O Input: 0-300 psi Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V Accuracy: +/-0.5%FS Thread: 1/8" NPT Wiring: Red: +5V; Black: ground; Green: signal output Overload Capacity: 2-4 times of rated pressure Working Temperature: -40~+120? Compensation Temperature: 0?~+80? Protection Class: IP67 Input: 0-500 psi (Gauge Pressure) Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, and 500 psi outputs 4.5V. Accuracy: +/-1%FS Thread: 1/8" NPT Wiring: Red for +5V; Black for ground; Yellow (Green) for signal output Overload Capacity: 2-4 times of rated pressure Working Temperature: -40?~+120? Compensation Temperature: 0?~+80? Protection Class: IP67 SATISFACTION--We care for every customer’s feeling.If this product does not meet or exceed your expectations,please send it back for a 100% refund no questions asked.

Key Features

• ✅ Widely Applications: This Transmitter Sensor has widely applications ,which works for oil, fuel, , gas, water, air pressure, can be used in oil , gas , etc
• ✅ Protetcion Function: It has complete voltage function
• ✅ Upgarde Pressure Transducer: This Pressure Sender is an advance pressure transducer than traditional mechanical pressure transducer
• ✅ Small Error Offers High Accurate: ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range
• ✅ Small Size Provides Convenient Light weight and small size, convenient to install and operate
