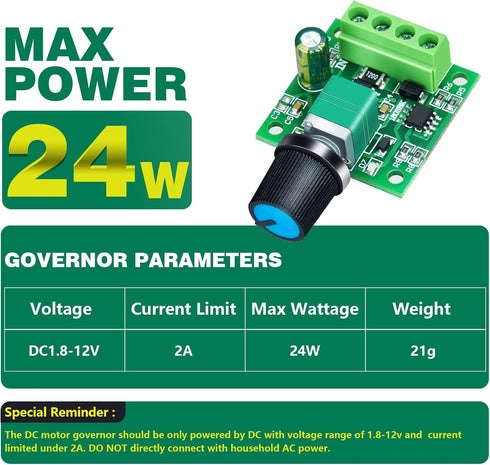

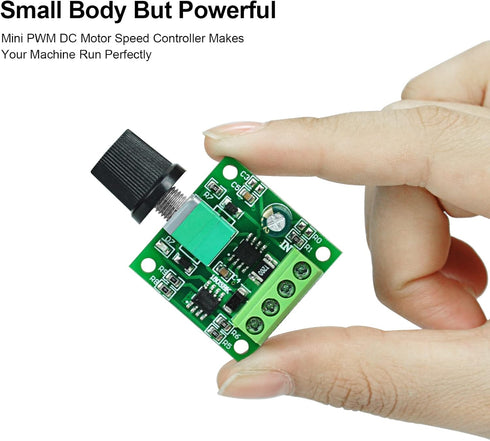

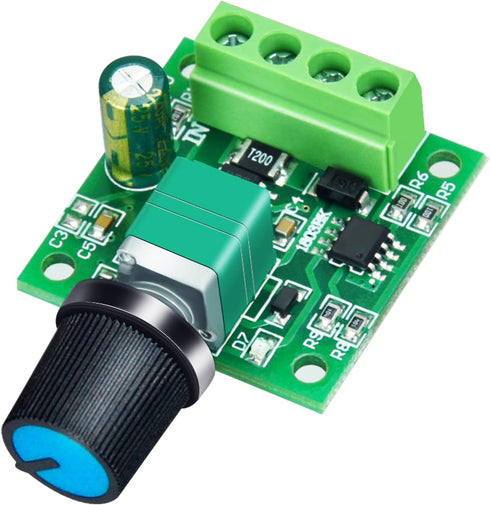

PWM Low Voltage DC Motor Speed Controller 1.8V to 12V 2A 24W Adjustable Driver Switch 1 Pack

PWM Low Voltage DC Motor Speed Controller 1.8V 3V 5V 6V 12V 2A 24W Adjustable Driver Switch 1Pack

PWM Low Voltage DC Motor Speed Controller 1.8V to 12V 2A 24W Adjustable Driver Switch 1 Pack

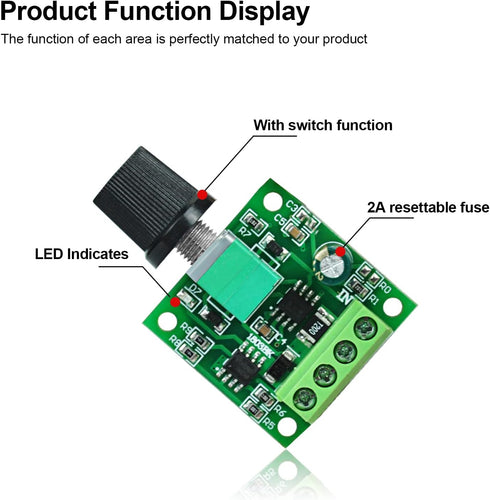

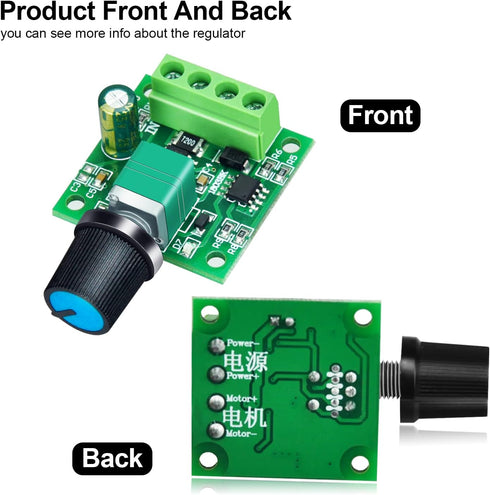

DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%. The motor speed controller is with a self-recovery fuse 2A and a Power-On LED light. It can easily provide a continuous current of 2A to your DC motor or other DC load. Main technical parameters: Specifications: Operating instruction: 1. Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram. 2. Connect a voltage of 1.8V-15V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse in line with the positive supply in order to protect the circuit from any possible short circuits. 3. You can now control the speed of the motor through potentiometer. Important Notes: An appropriately rated fuse (rated a little higher than the maximum current you expect to draw) is recommended to ensure safe operation. The controller is safe with a self-recovery fuse 2A. It will be damaged if connect the supply voltage with wrong polarity. Double check all connections before applying power and always turn off the power supply before making any wiring changes

Key Features

• ✅ [Small&Wide Voltage]Small PWM motor speed controller for DC low voltage 1.8V 3V 5V 6V 12V 2A,for fans,fish tank oxygen pumps,etc
• ✅ [Stepless Adjustment]Stepless dimmer switch knob from 0- 100%.The switch knob is made with great craft of smooth and even damping, for precise adjustment.
• ✅ [Resetalbe Fuse]Equipped with a resettable fuse. Auto disconnected when mx.current limit exceeded and self-Recovered after cool down. .
• ✅ [Mini Size]The entire size in only 1.3 by 1.3 by 0.55 inch,very tiny to be wiedly used.Tips:Please only use in DC with input current under 2A and 12V to ensure security.
• ✅ RISK-FREE PURCHASE: Our product would be your best choice either ,So our products are backed by our manufacturer 12-Months warranty money back or replacement guarantee for free .If for any reason you are less than satisfied with the product, please contact us service support in time.

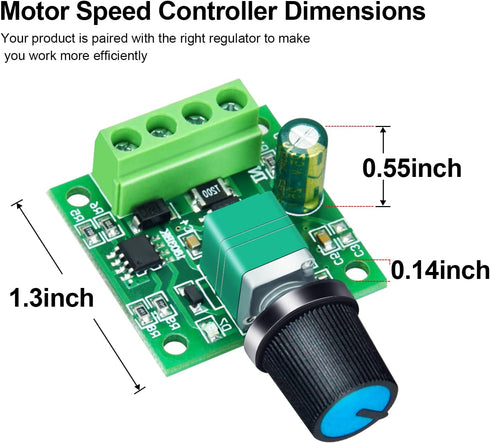

✅ Product Dimensions: 1.3 x 1.3 x 0.55 inches
