QIACHIP 433Mhz 12V 1CH (2 2 1 1CH) Universal Wireless Remote Control Switch DC Relay Receiver Module RF Transmitter

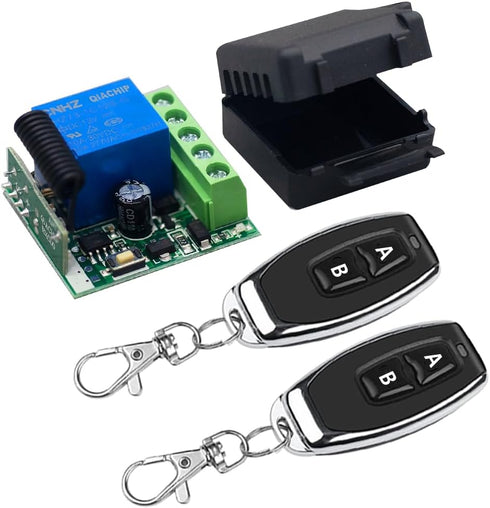

QIACHIP 433Mhz Universal Wireless Remote Control Switch DC 12V 1CH Relay Receiver Module RF Transmitter (2 Transmitters 2 Button+ 1 Receiver 1CH)

QIACHIP 433Mhz 12V 1CH (2 2 1 1CH) Universal Wireless Remote Control Switch DC Relay Receiver Module RF Transmitter

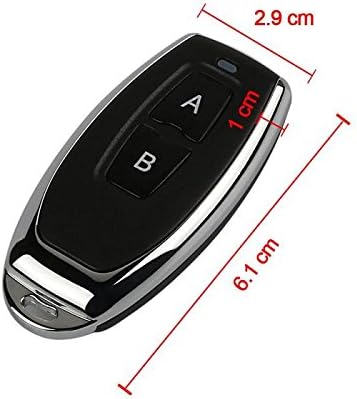

Product Type: 1 CH Wireless Remote Switch Receiver + 2-Button Transmitter Coded System: 1527 Learning Code Working Mode: Momentary, Toggle, Latched and Time Delay Mode. Modulation Mode: ASK Operating RF Frequency: 433MHz Input Voltage: 12 V RF working mode: Superheterodyne Receiver sensitivity: > 97 dbm Transmitting distance: > 100 m ( open space) Decoding mode: MCU software decoding Remote storage: 20 Support remote type: EV1527 learning code Working mode: Momentary, toggle, latched, time delay (5s ,10s ,15s ) Output terminal: NO , NC , COM Dimension of PCB: 35 x 30 x 18 mm (L,W,H) Remote control battery: 2 x 3 V CR2016 button batteries Momentary: Press the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle: Press once the remote button , the relay connects , press the remote button again , the relay dis-connects . Latched: Press the remote button A, the relay connects, press the remote button B, the relay dis-connect. Time delay mode: Press the remote control button , the relay connects , from when release the remote button , After 5s or 10s or 15s , the relay disconnect automatically . Reset function : Clear all matched remotes.When the data is cleared,all remote control can't make receiver work. Setting reset: After pressing the receiver's learning button 8 times,the receiver clears all remote control data in its memory.When the receiver's LED light flashes,the reset function is complete. Step 1.Press the receiver's learning button once. Wait for the LED on the receiver to light on and enter the setting state. Step 2.Press the button on the remote control (such as A) once. Step 1.Press the receiver's learning button twice. Wait for the Led on the receiver to light on and enter the setting state. Step 2.Press the button on the remote control (such as A) once. Step 1.Press the receiver's learning button 3 times. Step 2.Press the button on the remote control (such as A) once. Step 3.Press another button (such as B) of the same remote control. Step 1.Press the learn button on the receiver as required (Delay time:press 4 times for 5s,press 5 times for 10s,press 6 times for 15s,press 7 times for 20 s) . Step 2.Press the button (such as button A) on the remote control once. It is recommended to use a DC power source (not a dry battery) that can supply power for a long period of time to power the product. WARNING: For the safety of the product and you, do not connect AC power directly to the product input V+V-! It is recommended to use a DC power source (not a dry battery) that can supply power for a long period of time to power the product. WARNING: For the safety of the product and you, do not connect AC power directly to the product input V+V-! It is recommended to use a DC power source (not a dry battery) that can supply power for a long period of time to power the product. WARNING: For the safety of the product and you, do not connect AC power directly to the product input V+V-! 1. The receiver's power supply terminals (V+/V-) are strictly limited to 12V DC. Connecting to 110V or 220V mains power is strictly prohibited. 2. The output terminals are relay dry contacts (COM/NO/NC), capable of switching mains power up to 250V AC. However, strictly distinguish: Left screw terminal block = Low-voltage power input (12 V) Right terminal block = Dry contact output (can connect to mains power) Always verify terminal markings before wiring. Connecting a live wire to the 12 V terminal will cause immediate circuit board failure. 3. Static current 6mA when receiver is in real-time standby mode. Battery operation requires a battery with capacity 2000mAh or a 12V regulated power adapter. 4. Standard configuration includes a 433MHz fixed-code transmitter; cannot learn other brand remote controls. Purchase same-brand products if additional remotes are needed.

Brand: QIACHIP

improvement, button, receiver, universal wireless, transmitter transmitters, control switch, 433mhz, 1ch tools, building supplies, qiachip, building, transmitters button Tools & Home Improvement Building Supplies Building Materials Doors Garage Doors, Openers & Parts

Key Features

• 433 Mhz Universal Wireless Remote: Input Voltage 12 V, Working Mode of Wireless 433mhz rf module receiver and transmitter RF are Superheterodyne .
• RF Switch DC: Transmitting distance: > 100 m ( open space), Only Support remote type: EV1527 learning code.

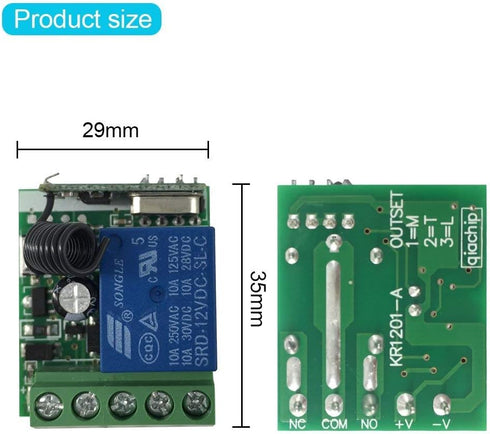

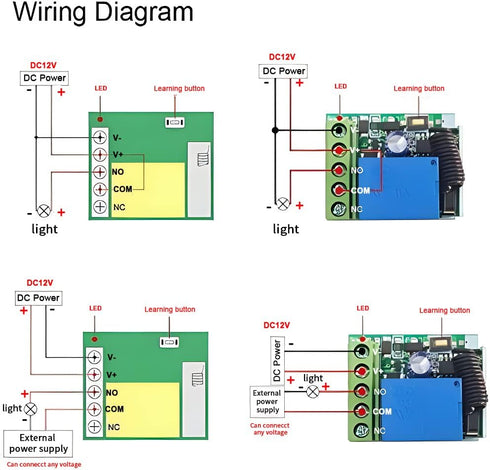

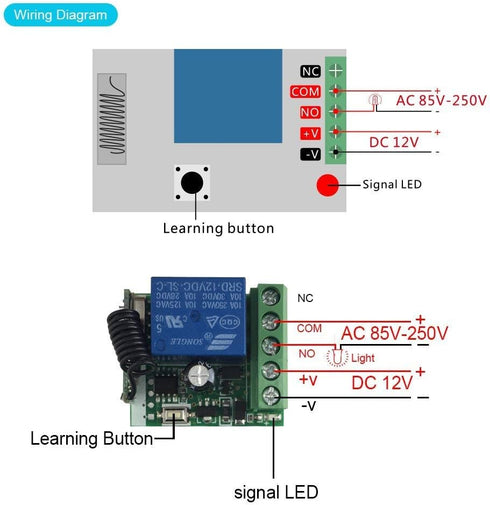

• Wireless Relay 12v :Dimension of PCB:35 x 30 x 18 mm (L,W,H) ,Output terminal: NO , NC , COM.

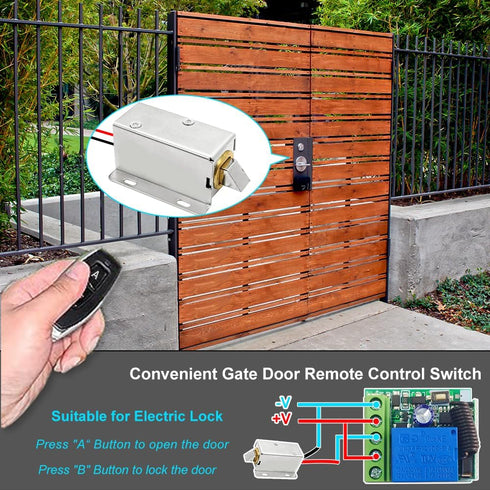

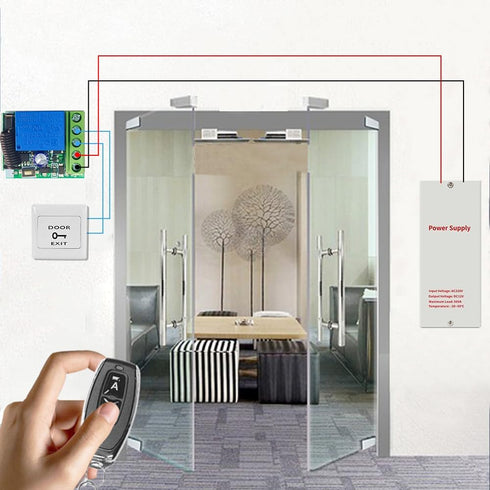

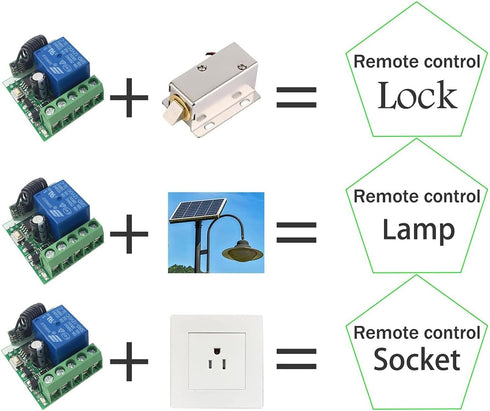

• It supports remotely and wirelessly control your Garage Door, Electronic Gates, Electrical Appliances and other telecommand equipments ,Electrical Appliances, Motorcycle Alarm, Car Sunroofs, Heating Systems, etc. Bringing you brand new experience of remote control, Please don't miss it.
• Support Remote Control up to 20 Pieces any one with the same frequency of the remote control are used together, so you don't have to worry about losing the remote control. (If you lose the remote control, just buy one and pair it with a PCB board.)

Product Details

• Item Weight: 0.09 Kilograms
• Model Number: B07GJT1D1Z
• Color: DC 12V/1 receiver + 2 transmitters
