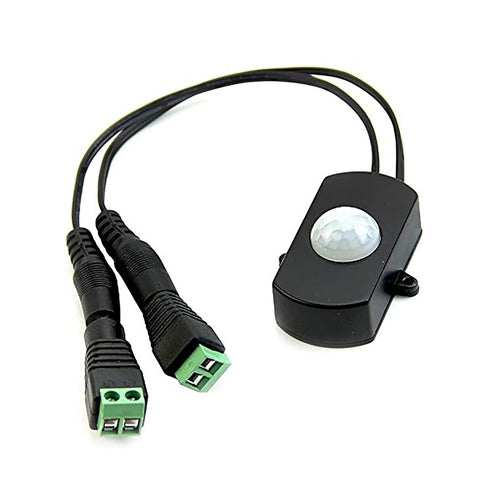

RGBZONE Mini PIR Infrared Motion Sensor Detector Switch, 5A for LED Strip Light, Female Male DC Power Connector

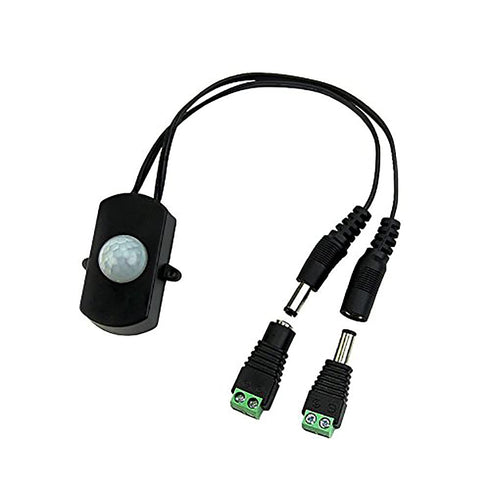

RGBZONE Automatic Mini 5A PIR Infrared Motion Sensor Detector Switch for LED Strip Light + Female Male DC Power Connector

RGBZONE Mini PIR Infrared Motion Sensor Detector Switch, 5A for LED Strip Light, Female Male DC Power Connector

WIFI/Bluetooth/IR/RF/PWM LED Controller Working Voltage: DC5V/DC12V/DC24V Only Indoor Use RGBZONE is committed to continuous product innovation to provide personalized life experience. We are experts in LED Controller. Our products are of high quality and bring you a more comfortable life. According to your suggestions, we will continue to improve and optimize our products to provide you with better choices. Smart Ceiling Fan Control and Dimmer Light Switch LED Dimmer Switch with Wireless Remote Control PIR(Passive infrared) Motion sensor is pyroelectric device can detect human movement by detecting Infrared ray emitted by human body. Operating voltage is 5~24VDC, and output voltage is equal to input voltage. 1.Passive Infrared Sensor 2.Operating Voltage: DC5V ~ 24V 3.Load Current: 5A 4.Delay Time: 5~10 Seconds, adjustable 5.Detecting Range: 120 6.Detecting Distance: <8M, adjustable 7.Size: 50 * 26 * 21.5mm / 1.96 * 1.02 * 0.84inch 8.Trigger Way: Continuous triggering 9.Light Sensor: 10LUX 10.Color: Black 1.Don't exposed to direct sun light or lighting, big wind, near a heater or air condition 2.Don't fix it at a place where there are obstructing material (eg. Glass, dense clothes) which IR cannot get though 3.Don't fix it in strong shock or vibration environment 4.The PIR Sensor requires a "warm-up time" in order to function properly, about 10s to1min,depend on the delay time; during this time, the signal triggered by the module is not stable, after one minute, it will be ready 5.The sensitivity for left-right direction is better than up-down direction, make sure the installation direction is left-right Quantity:1pc Automatic Induction: When people enter into the range of induction,during the delay time if motion detected, the delay time will reset, and start a new delay time Package includes: 1 x Body Infrared Motion Sensor 2 x DC adapter Easy to connect light strips.

Key Features

• ✅ Operating voltage: DC 5-24V Load current: 5A

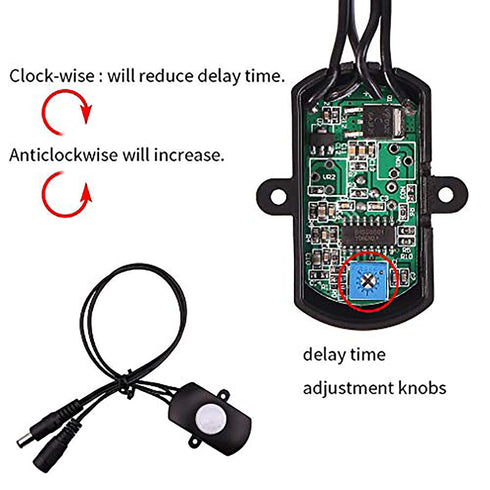

• ✅ Delay time: Default setting 3-15sec
• ✅ Automatic Induction: When people enter into the range of induction, it will output a voltage equal to input voltage, after the delay time, it will output 0V; during the delay time if motion detected, the delay time will reset, and start a new delay time
• ✅ During the lighting, every effective human activities will cause delay sensor switch extended a period of time automatically
• ✅ Trigger Way: Continuous triggering,Light Sensor: 10LUX
