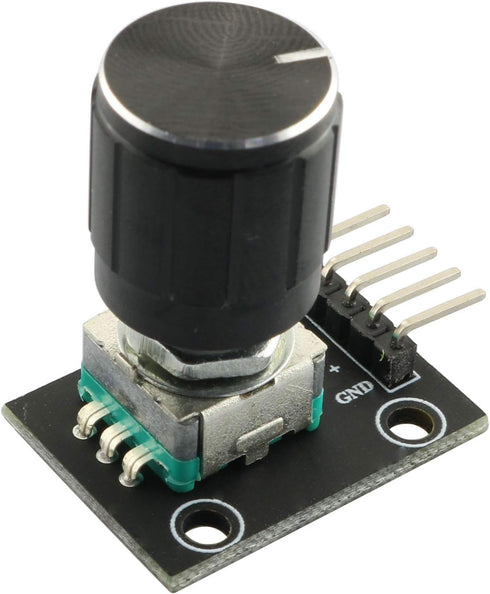

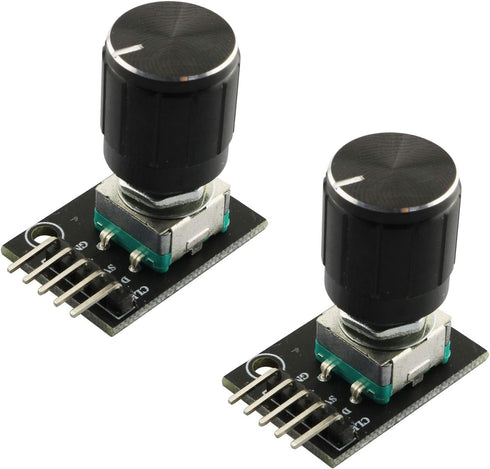

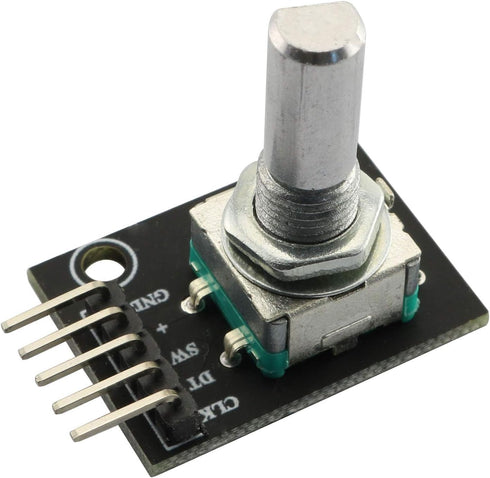

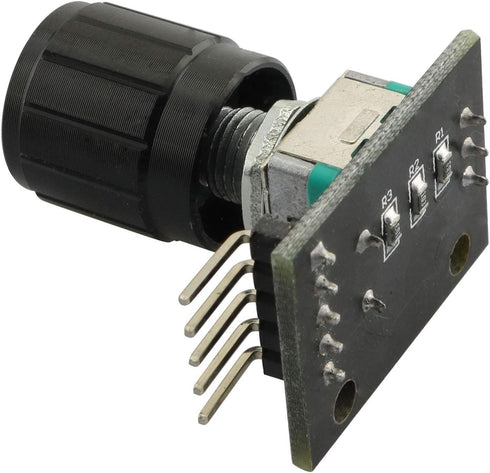

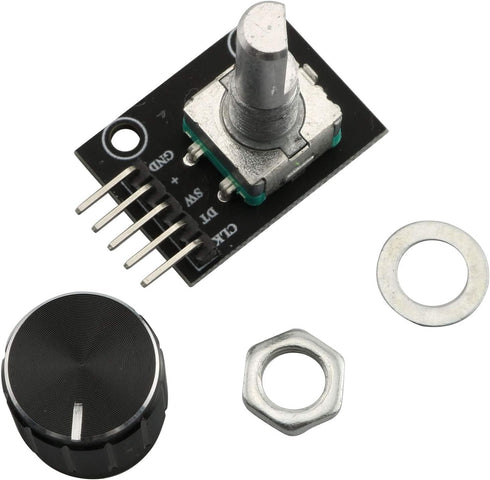

RLECS 2pcs Encoder Module Brick Sensor, Clickable Switch 360 Degree Rotary KY-040 with Knob Cap for Arduino

RLECS 2pcs Encoder Module Brick Sensor clickable Switch 360 Degree Rotary KY-040 with Knob Cap for Arduino

RLECS 2pcs Encoder Module Brick Sensor, Clickable Switch 360 Degree Rotary KY-040 with Knob Cap for Arduino

Specification: Type: KY-040 Rotary Decoder Encoder Operating Voltage: 5V One round number of pulse: 20 Width: 19mm Length: 30mm Height: 28mm Material of Knob Cap: Aluminium Alloy Diameter of Knob Cap: 14mm Height of Knob Cap: 17mm Package includes: 2 x KY-040 Rotary Decoder Encoder Pin description: CLK - equivalent to output A in regular encoder. DT - equivalent to output B in regular encoder. GND - equivalent to output C in regular encoder. SW - reset switch. + (VCC) - positive supply to the unit. The KY-040 rotary encoder is a 360 degree rotary input device (i.e. a control knob) that provides an indication of how much the knob has been rotated AND which direction it is rotating in. It is a great device for stepper and servo motor control. You can also use it to control devices like digital potentiometers. It is ideal for navigating menus on a display or taking inputs such as numbers or text characters. The range of input can be easily defined and mapped in software. A push button switch is built into this encoder. If you push on the shaft, the normally open switch "SW" will close. This can be used as an On/Off switch, to change control functions, ranges, selecting a menu item or entering a number. The "D" shaft of the encoder can be fitted with a knob for using it in a product.

Key Features

• ✅ Type: KY-040 Rotary Decoder Encoder
• ✅ Operating Voltage: 5V; One round number of pulse: 20
• ✅ Size: 30x19x28mm(LxWxH); Package: 2 x KY-040 Rotary Decoder Encoder
• ✅ No limitation on rotation counts
• ✅ The encoder can be reset to its initial state, that starts counting from 0 with the button on the rotary
