SD20 Series 12 Pin Waterproof Connector, 12 Wire Aviation LED Industrial High Voltage Circular Connector, IP67

SD20 Series 12 pin Waterproof Connector, 12 Wire Aviation LED Industrial High Voltage Electrical Heavy Circular Connector Bulkhead Plug Socket, IP67 (Bulkhead Panel Mount, 12 Pin)

SD20 Series 12 Pin Waterproof Connector, 12 Wire Aviation LED Industrial High Voltage Circular Connector, IP67

SD20 Serials IP67 Waterproof connector, 1 2 3 4 5 6 7 8 9 10 12 14PIN Aviation Connector POWER CABLE AVIATION PLUG SOCKET 1pin, 3pin, 4pin, 5pin: Rated Current (A): 25A Contact diameter × number: F2.8x1 / F2.8x2 / F2.8x 3 / F2.8x 4 / F2.8x 5 Rated voltage (AC.V.): 250V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 1mO Wire specification: <4m?/11AWG 6pin, 7pin: Rated Current (A): 10A Contact diameter × number: F1.8x6 /F1.8x7 Rated voltage (AC.V.): 250V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 2.5mO Wire specification: <2m?/14AWG 9pin, 10pin, 12pin, 14pin : Rated Current (A): 5A Contact diameter × number: F1.0x8 / F1.0x9 / F1.0x10 / F1.0x12 Rated voltage (AC.V.): 250V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 5mO Wire specification: <0.785m?/18AWG Other details: Coupling: Thread Shell material: Plastic Insert Material: PPS, max temperature 120° Contact material: Brass with gold plating Termination: solder Cable outer diameter range: 6-12mm max

Key Features

• ✅ Part number: SD20, 12 pin Waterproof Aviation Bulkhead Panel Mount Connector, Termination type: Solder, Gender: Male plug female socket, Panel cutout: 20.5mm
• ✅ Contact diameter: F1.0x12, Wire specification: <0.785m?/18AWG, Default Cable specification: 6-12mm max

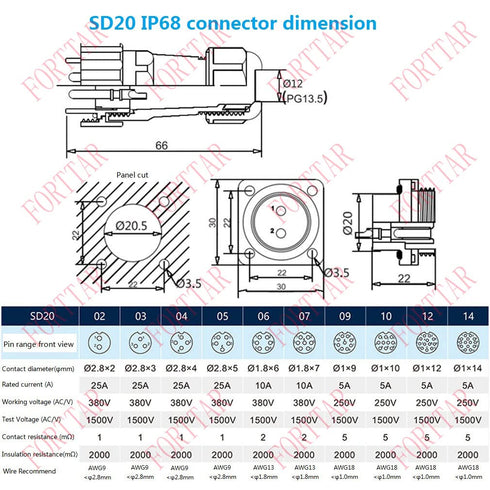

• ✅ Rated current: 5A, Rated voltage (AC.V.): 250V, Weight: 1.5 oz, PLEASE REFER TO 2ND PICTURE FOR SIZE AND PARAMETER DETAILS.

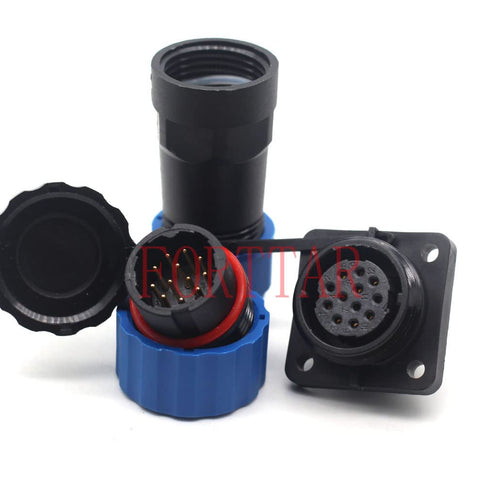

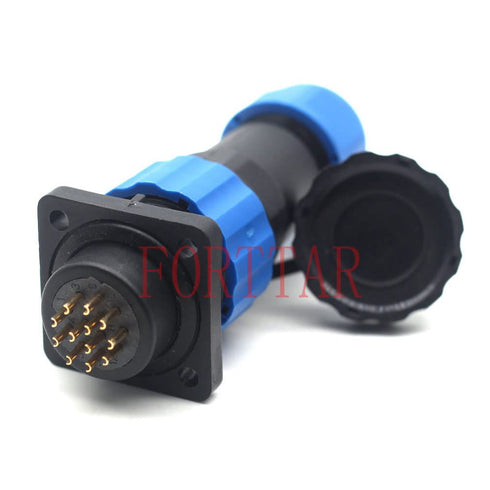

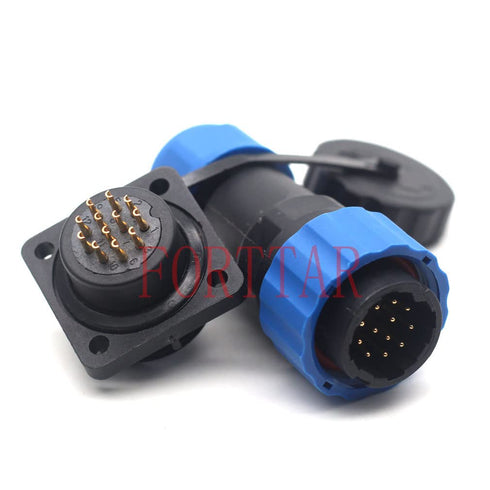

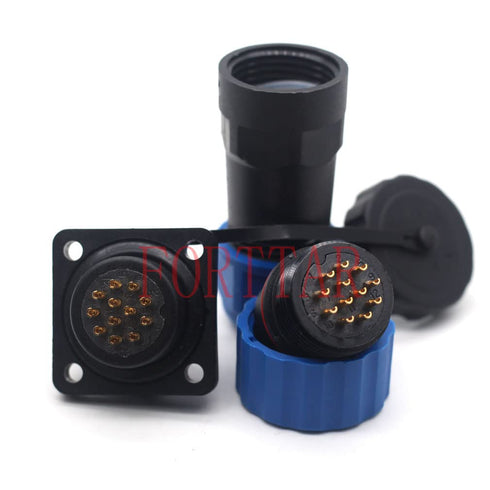

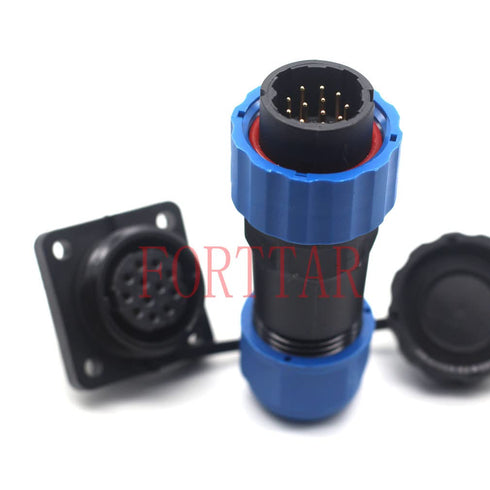

• ✅ What's in the package: 1 plug + 1 socket with cap + 4 set screw, Type: Circular Waterproof Aviation Connectors
• ✅ Stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.
