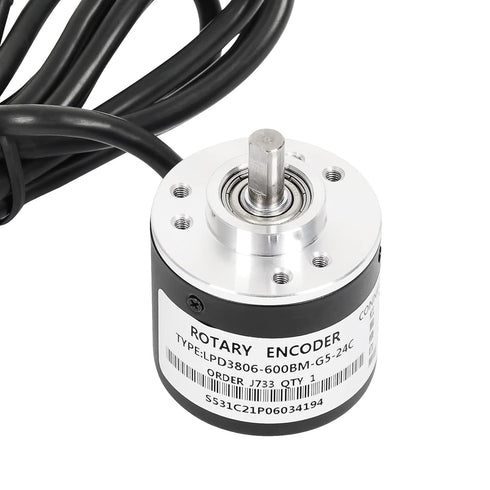

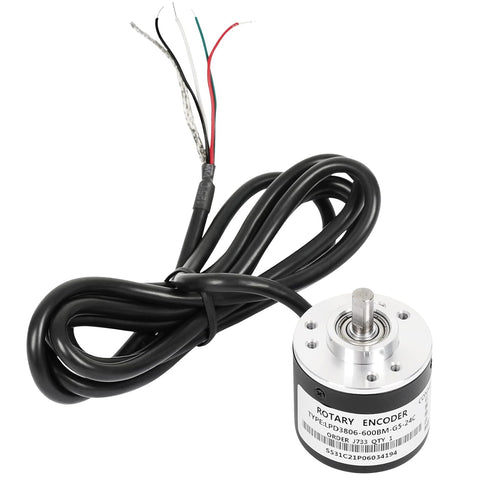

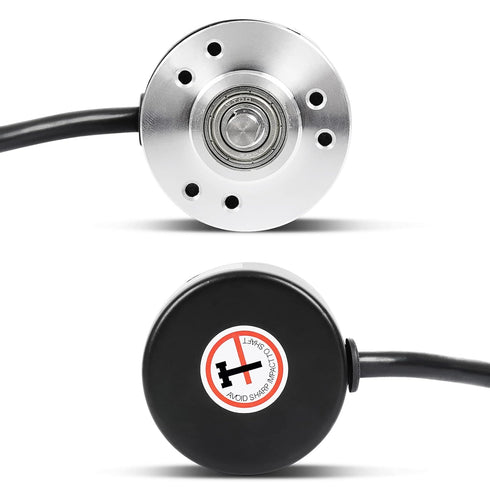

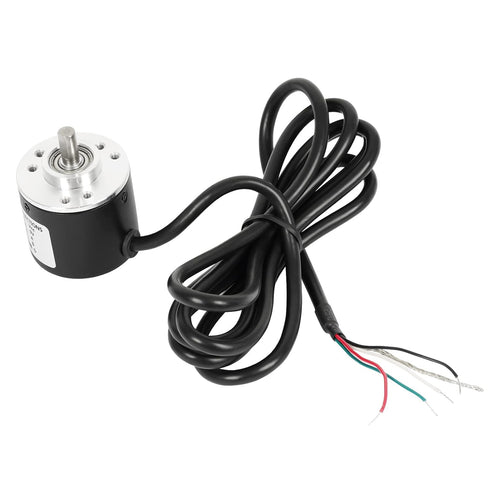

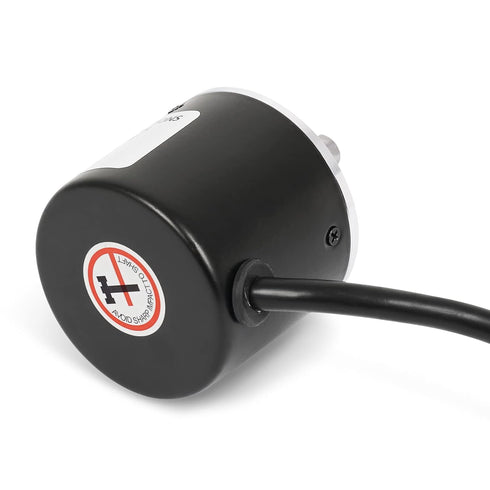

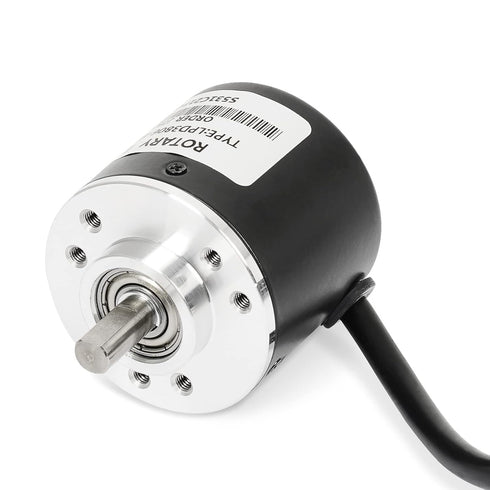

Signswise Incremental Optical Rotary Encoder for Arduino - 600P/R Wide Voltage Power Supply DC 5-24V, 6mm Shaft

Signswise Incremental Optical Rotary Encoder for Arduino 600P/R Wide Voltage Power Supply DC 5-24V 6mm Shaft Quadrature

Signswise Incremental Optical Rotary Encoder for Arduino - 600P/R Wide Voltage Power Supply DC 5-24V, 6mm Shaft

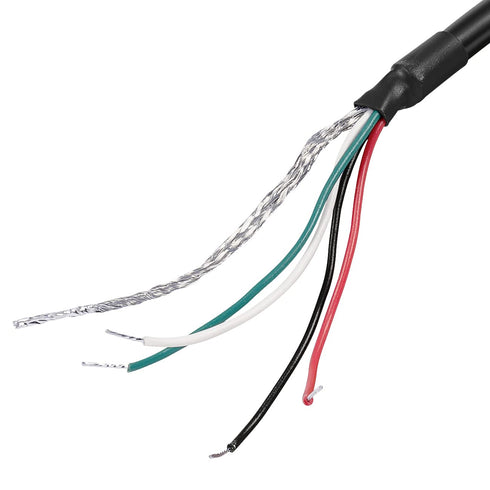

Functions v This incremental optical rotary encoder can be used to measure the rotational speed, angle and acceleration of the object and the length measurement. v This shaft encoder is suitable for a variety of intelligent control displacement measurement, automatic fixed- length automatic guillotine paper machine, steel cut length control, civilian measured height human scale, students racing robots. Connection: Yellow = A phase, Blue = B phase, Red =Vcc power +, Black = V0 Notice: AB 2phase output must not be directly connected with VCC, otherwise, it will burn the output triode. Specification 360 p/r (Single-phase 360 pulses/R,Two phase 4 frequency doubling to 1440 pulses). -Encoder size: 38 x 35.5mm/1.49" x 1.39" -Shaft: 6 x 13mm/0.23" x 0.51" -Axis stopper platform: High 5mm, 20mm -Power source: DC 5-24V -Maximum mechanical speed: 5000 R / min -Response frequency: 0-20KHz Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type Package content 1 x 360P/R Incremental Rotary Encoder

Key Features

• ✅ Precise Measurement: Accurately tracks rotational speed, angle, and acceleration for various applications
• ✅ Versatile Connection: Compatible with Arduino and other systems, featuring AB 2-phase output and NPN open collector output
• ✅ Wide Voltage Range: Operates smoothly with DC power supply from 5 to 24 volts
• ✅ Durable Construction: Robust design with a 6mm shaft and high axis stopper platform, suitable for demanding environments
• ✅ Easy Integration: Compact size (38 x 35.5mm) and clear color-coded connections for simple installation
