Slip Ring Electrical Connector, Motor Slip Ring Rotating Connector with 3 Wires, 30A Diameter 22mm

Slip Ring Electrical Slip Ring Slip Ring Connector Motor Slip Ring Rotating Connector Slip Ring Electrical Connector 3 Wires 30A Diameter 22mm

Slip Ring Electrical Connector, Motor Slip Ring Rotating Connector with 3 Wires, 30A Diameter 22mm

Features. 1. the rotating contact surface is gold-gold, and the precious metal contact ensures an extremely long working life. 360° smooth and unrestricted rotation, fully satisfying image and data transmission. 2. Low torque, low noise, wide range of applications, can meet the requirements of various industries, and can be customized according to customer needs. Compact structure and smooth operation. Applications. For PTZ, electrical test equipment, turntables, medical equipment, CCTV security monitoring equipment, robots, exhibition/display equipment, manufacturing and process control equipment, small wind turbines, radar antennas, etc.. Specifications: Voltage: 0-440 VAC/DC Speed: 0-300 Rpm Housing Material: Engineering Plastics Work Humidity: 60%RH or higher Work Temp.: -40?~+80? Contact material: Gold plated ring-Gold plated brush nsulation resistance: 1000 M? @ 500 VDC Dielectric strength: Between each circuit and all other circuits,= 500 VAC @ 50Hz Electrical noise: =10m? Work life: Depending on speed and working environment, =80,000,000 runs ref Applications: Monitoring System/Electrical test equipment/Medical equipment/obotics

Key Features

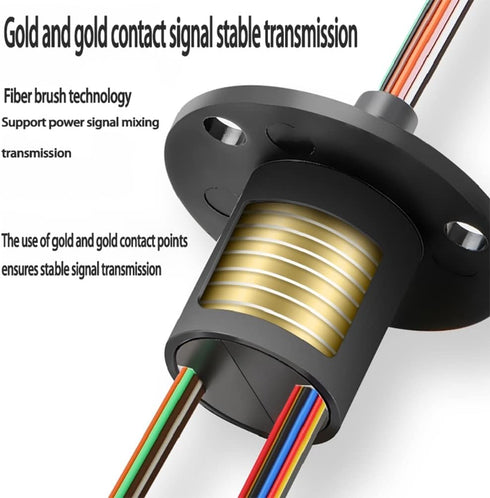

• ✅ 1. HIGH QUALITY: The conductive slip ring with fiber brush technology, support power signal mixed transmission, the use of gold and gold contacts to ensure the stable transmission of current and signal, while the shell uses imported engineering plastics to ensure an extremely long working life

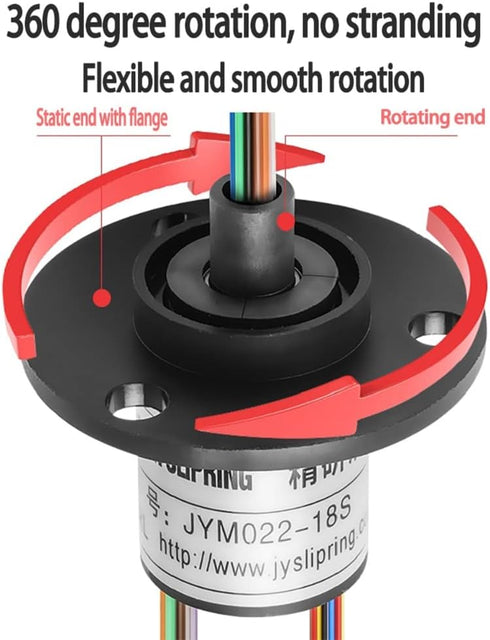

• ✅ 2. FUNCTION: Slip ring can be positive and negative 360 ° smooth unrestricted rotation without stranding, fully meet the image and data transmission and high-power 30A current transmission; our electrical slip ring a can be used for multiple purposes, can replace 10A 15A 30A and other amperage slip ring, more stable transmission, longer service life
• ✅ 3. PERFORMANCE: Stator leads and rotor leads using colored wires to simplify circuit connections, low torque, low noise, wide range of applications to meet the requirements of various industries, compact structure and smooth operation
• ✅ 4. WIDE: Suitable for PTZ, electrical test equipment, vehicle air conditioners, fishing reels, rotary tables, medical equipment, monitoring equipment, robots, exhibition/display equipment, manufacturing and processing control equipment, small wind turbines, radar antennas, etc

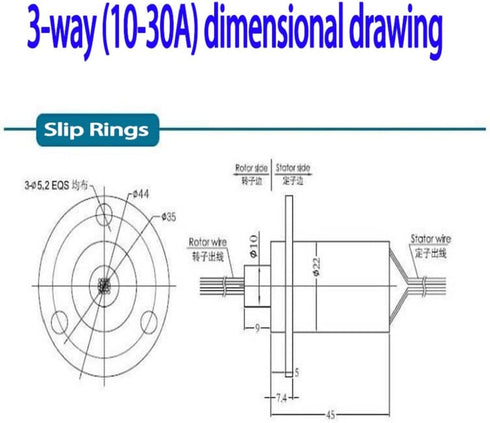

• ✅ 5. SPECIFICATIONS AND INSTALLATION: Electrical Slip Ring: positive and negative 360 degrees rotation, 3 Wires 30A Diameter 22mm. simple installation: slip ring into the sleeve, fixing screws, connect the wire can be
