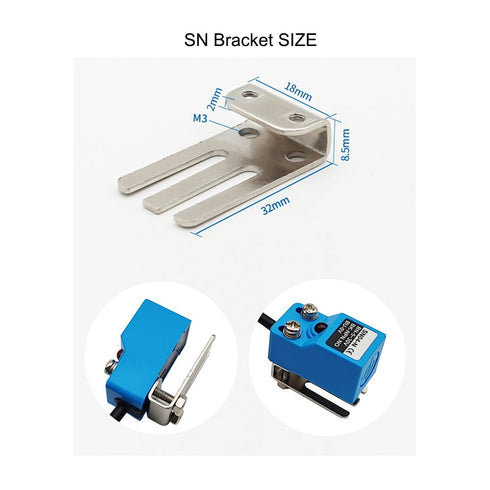

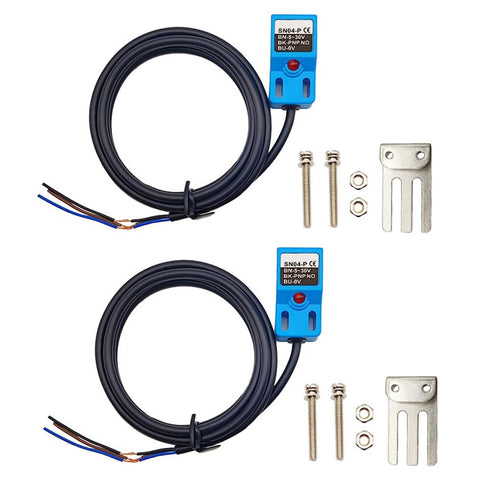

SN04-P PNP NO Inductive Proximity Sensor Normally Open Detection Switch with SN Bracket (Blue, 2 Pack)

SN04-P PNP NO Inductive Proximity Sensor Normally Open Detection Approach Switch with SN Bracket (Blue, 2 Pack)

SN04-P PNP NO Inductive Proximity Sensor Normally Open Detection Switch with SN Bracket (Blue, 2 Pack)

An inductive proximity switch consists of high frequency oscillation, detection, amplification, triggering and output circuits. The oscillator generates an alternating magnetic field on the detecting surface. When there is a metal object close to its detecting surface, the eddy current generated in the metal absorbs the energy of the oscillator, which makes it weaken to stop oscillating. The oscillator oscillation and stop vibration of these two states is converted into an electrical signal through the detection, amplification and trigger output circuit. Normally open (NO) is the usual state of the signal output line is disconnected state, no signal output, when sensed to the object is closed, the output signal. Normally closed (NC) is the usual state of the signal output line for the closed state, continuous signal output, when the sense of the object is disconnected, close the signal. signal indicator, when sensing metal objects the light is on for normally open, the light is off for normally closed. The function of proximity switches (also known as non-contact travel switches) is to act when approaching metal, and are widely used in machine tools, metallurgy, chemical industry, light textile and printing industries, in the automatic control system can be used as limit, counting, positioning control and automatic protection link, etc.. Shape: Square Size: 18*18*36mm Weight: 50g Color: Blue Wire length: 1.2m Size: 32*18*8.5mm Weight: 15g Color: Silvery With 2pcs M3 screws Brown connect to Positive Blue connect to Negative Black connect to Load (signal output) Mode: SN04-N Output Type: NPN NO Mode: SN04-P Output Type: PNP NO Mode: SN04-N2 Output Type: NPN NC Mode: SN04-P2 Output Type: PNP NC

Key Features

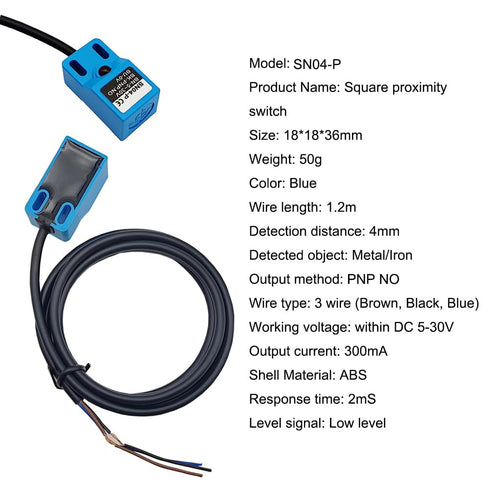

• ✅ Inductive Proximity Switch Type: SN04-P, 3 Wire NPN NO. Detecting Distance: 4mm. Supply Voltage: 5-30VDC, Current Output: 300mA.

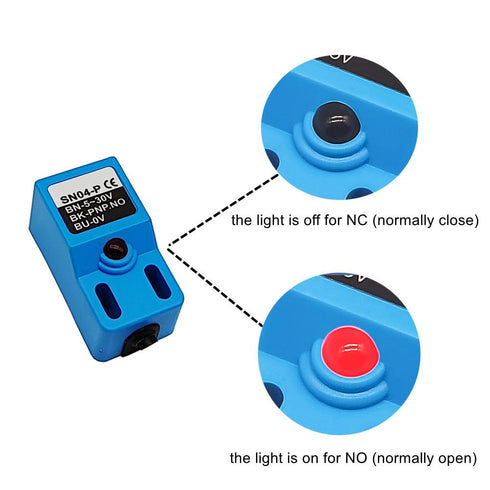

• ✅ LED working indicator: signal indicator, when sensing metal objects the light is on for normally open, the light is off for normally closed.

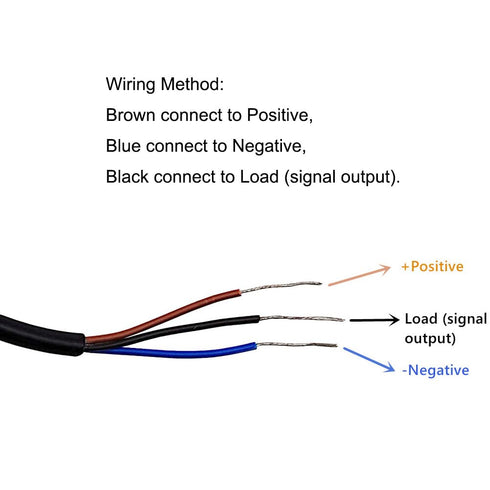

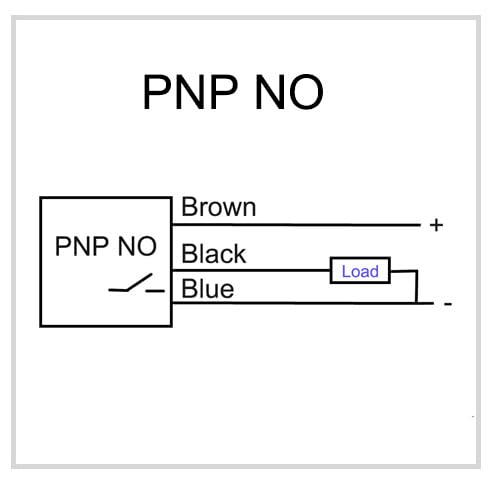

• ✅ Wiring Method: Brown connect to Positive, Blue connect to Negative, Black connect to Load (signal output).
• ✅ NPN: common positive voltage, output negative voltage. PNP: common negative voltage, output positive voltage. NO: normally open. NC: normally closed.
• ✅ When proximity switch is close to some target object, it will send out control signal. Widely used for machine tool industry, frequency counters and other automatic control system, or you can use it for DIY 3D Printer.
