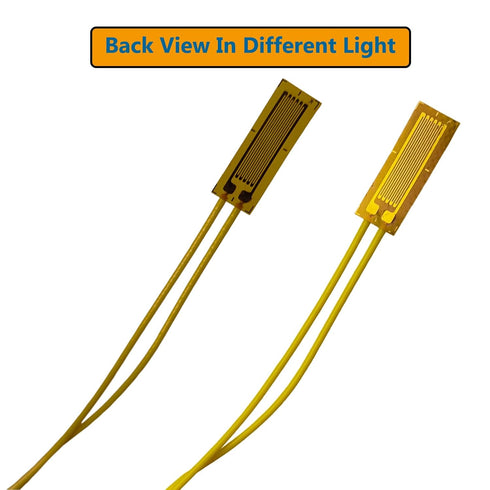

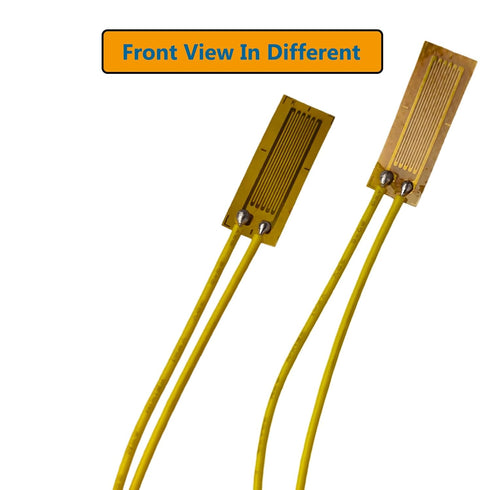

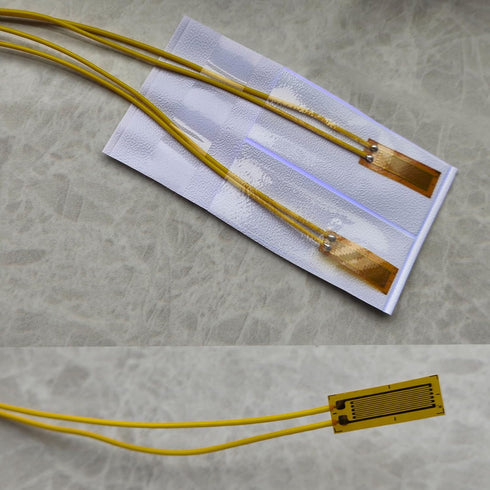

Strain Gauge, 120ohm Foil Sensor, 10AA Load Cell Pressure Resistance Strain Gauge, 2 Pieces

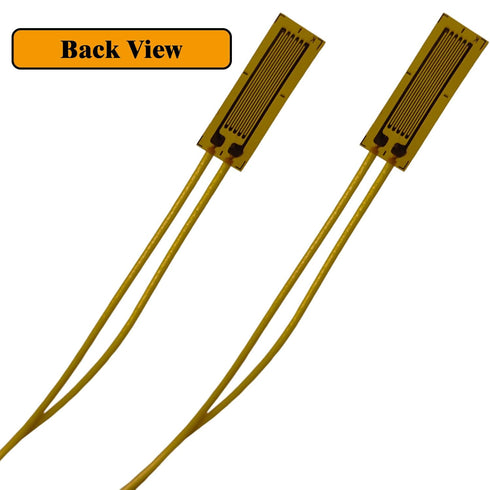

Strain Gauge, 120ohm Foil Strain Gauge Sensor, 10AA Load Cell Pressure Resistance Strain Gauge, Linear Strain Gages (Grid Size: 10 x3mm, 2 Pieces)

Strain Gauge, 120ohm Foil Sensor, 10AA Load Cell Pressure Resistance Strain Gauge, 2 Pieces

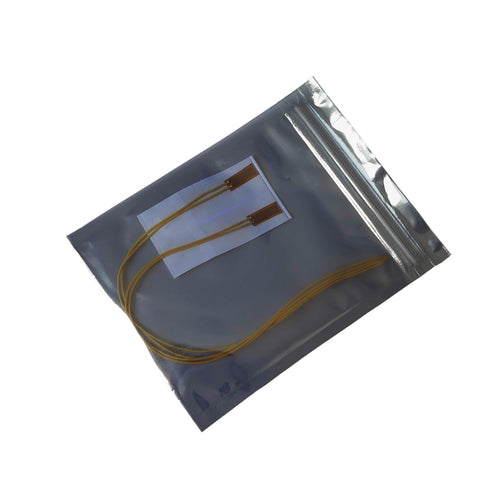

Applications of Strain Gauge ? For monitoring structures such as bridges and buildings ? In load cells for weighbridges, scales, vehicles and in medical and educational applications ? They can be bonded to the railway lines themselves to monitor and measure the stress the lines are under ? Strain gauge technology is used within passenger occupancy detection systems to indicate when passenger airbags should be engaged Features of Strain Gauge ? Clear alignment marks ? Ribbon leads termination ? Broad temperature range ? Good over-range capability ? Pre-wired for fast Installation ? Stable devices with fast response ? It's precise and safe, durable and efficient ? It requires low maintenance and inexpensive Technical Parameters Type: BX120-10AA metal foil resistance strain gauge Grid Style: Linear Shape: Rectangular Gauge resistance: 120±0.2O Strain limit: 20000um/m Dimensions: 14.5mm*5.7mm Sensitive to grid size: 10mm*3mm Sensitivity coefficient: 2.08 ± 1% Temperature range of use: -20~+80? Lead specification: 20cm PVC lead Package Included: 2 x BX120-10AA Strain Gages

Key Features

• ✅ 0.2-meter PVC leads and 120 ohm resistance, 10 mm Grid Length, 3mm Grid Width, compatible with any dynamic or static strain gauge

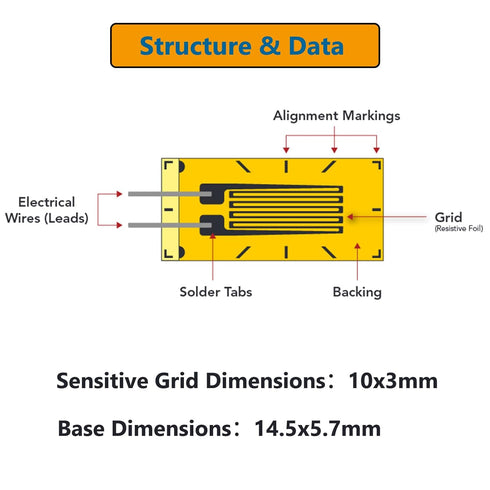

• ✅ The strain gage is made up of 3 layers: a protective laminate top layer, a thin metallic sensing element, plastic film base layer
• ✅ Clear alignment marks outside the active area help align the gauge during installation. The gauge is far more sensitive to strain in the vertical direction than in the horizontal direction

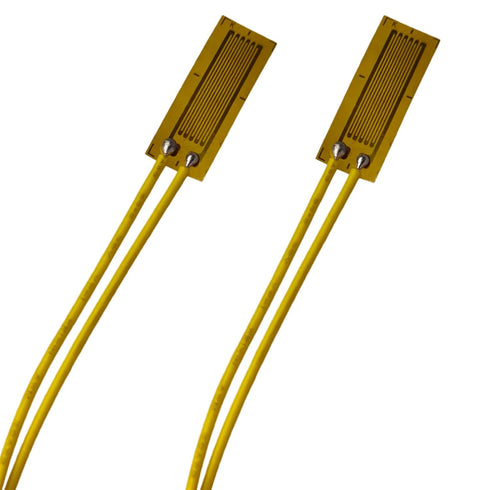

• ✅ 14.5X5.7mm size makes it easy to dissipate heat, consumes less power per unit area, the pre-wired strain gauge can be used in measurement directly without pasting and soldering
• ✅ Strain gauges is widely applied for scientific, industrial and experimental stress analysis, can be used for experimental stress analysis monitoring industrial equipment or various scientific applications

✅ Product Dimensions: 0.57 x 0.22 x 0.01 inches; 0.18 ounces
