Strain Gauge for Mechanics Experiment in Material, Industry, or Science
SKU: PGABL1804238
VENDOR: Culler
You Save: $4.12 (13%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
Strain Gauge Used in Mechanics Experiment for Material, Industry or Science
Strain Gauge for Mechanics Experiment in Material, Industry, or Science
Technical parameter: 1.Resistance: 120±0.2 ohms 2.Sensitivity coefficient: 2.08 3.Precision grade: A grade 4.Sensitive grid size: length 10mm, width 3mm 5.Base size: length 14.5mm; width 5.7mm 6.The insulated wire length: 20cm 7.Working temperature: -20 ? —80 ? 8.Resolution: 0.5% Strain gauge using steps 1. Strain gauge preparation Prepare experimental strain gauges and check. 2. Surface treatment of components 3. Patch:Using glue is OK. 4. Wire welding and fixing This product has soldered wires, just need to connect the wires to the machine. 5. Patch quality inspection 6. Notice the protection of strain gauges and wires
Key Features
- ✅ Smart and convenient for measuring the strain of surface while applying Wheatstone Bridge
- ✅ Matches any dynamic or static strain-instrument such as YSV8316, YSV7008 and so on

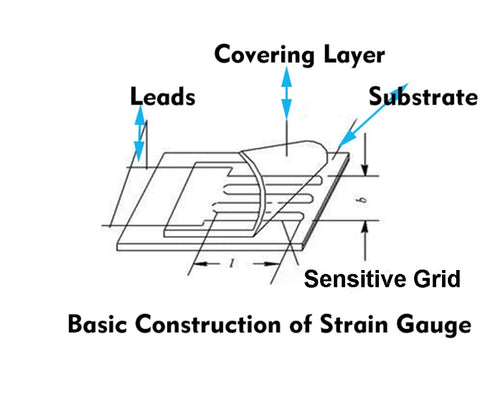

- ✅ The main part is composed of sensitive grid and substrate with two external wires which connect to the machine without welding
- ✅ This strain gauge can only measure the strain in one direction. Generally, the main strain need be calculated from the strain in three directions
- ✅ Widely used in mechanical experiments in materials, industry or science
Shipping & Guarantees
- ✅ FREE standard shipping within the United States (3–6 business days)
- ✅ 100% money-back guarantee for lost or damaged items
- ✅ Secure checkout with encrypted payment processing
- ✅ Shipping via UPS, FedEx, and USPS
- ✅ Ships to lower 48 states only (no PO Boxes / APO / FPO)
Returns
- ✅ 30-day hassle-free returns
- ✅ Items must be unused and in original packaging
- ✅ Full refund if item is not delivered
- ✅ Guaranteed delivery within 6–7 business days
Payment Methods
✅ Credit Cards, PayPal, Shop Pay, Apple Pay, Google Pay, Amazon Pay, Meta Pay
Customer Support
✅ Questions? Contact us at Support@GiftAbay.com
We respond within 24 hours on business days.
SEO Title:
Keywords:
Category: Industrial & Scientific
Subcategories: Test, Measure & Inspect, Pressure & Vacuum, Pressure & Vacuum Gauges, Pressure Gauge Accessories
