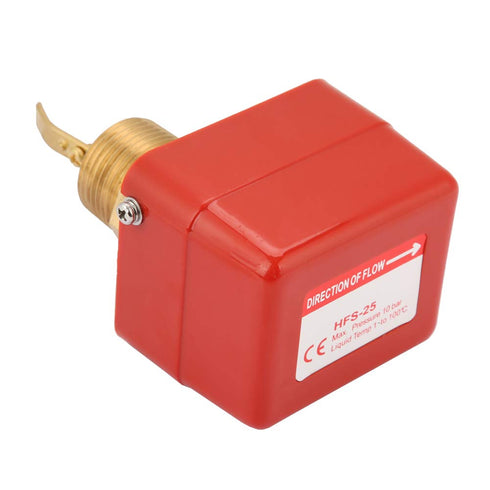

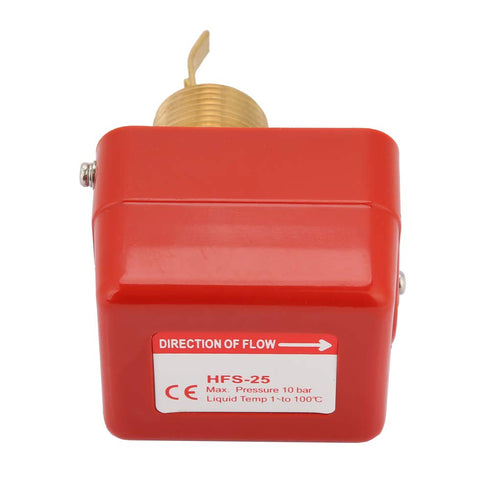

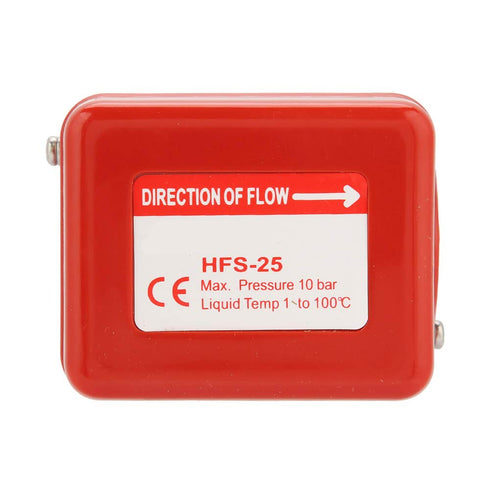

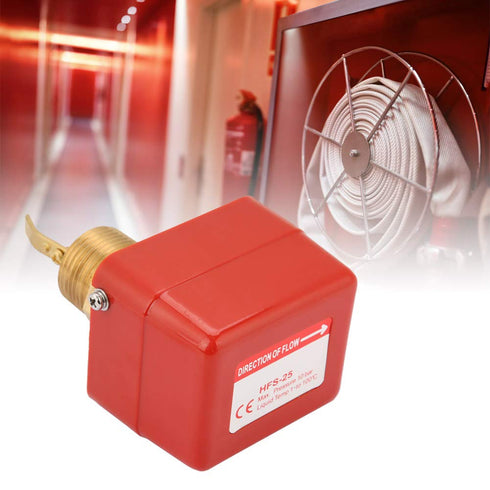

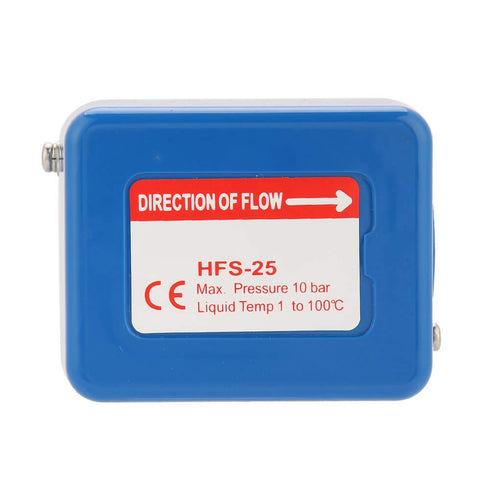

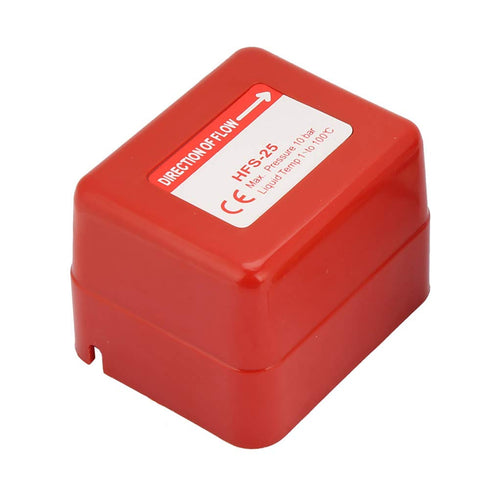

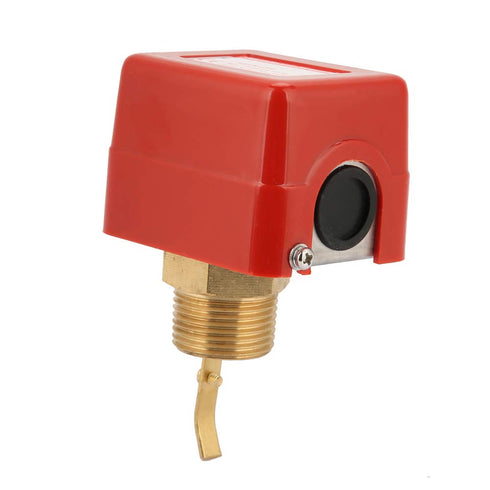

Switch, Partial Stainless Steel Type 6-380V, 1 Paddle Control Water Switch for Water Treatment System

Switch, Partial Stainless Steel Type 6-380V 1 Paddle Control Water Switch 1.0MPa SPDT Contacts for Water Treatment System Central Air Conditioning Water Cooling Unit

Switch, Partial Stainless Steel Type 6-380V, 1 Paddle Control Water Switch for Water Treatment System

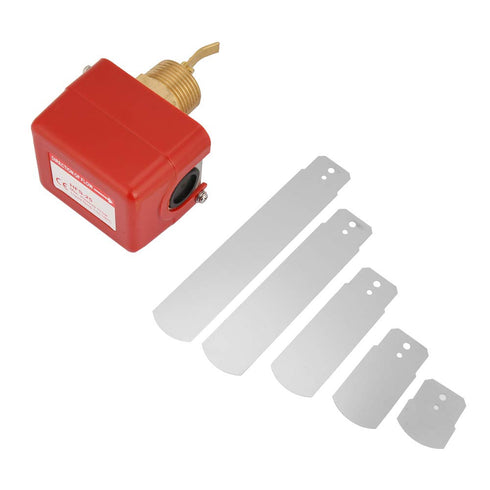

Specification: Model: HFS-25 Voltage: 6-380V Control mode: Paddle Switch type: SPDT Material: 304 stainless steel body, copper connector, phosphor bronze bellows Connector: 1 / 25mm . working pressure: 1.0MPa Ambient temperature: 0~60? Liquid temperature: -10~100?(Fluid without icing) Contact life: 1000000 times Microswitch Voltage: 220VAC Microswitch Current: 15A Weight: Approx.416g/ 14.7oz Package List: 1 * Water Switch 5 * Paddle 1 * User manual Installation method: 1. Open the switch 2. The switch has been set at minimum rate. Turn the adjusting screw counterclockwise to increase the setting value. 3. Press the target to check whether the micro switch can work normally. Excessive clockwise rotation of the adjusting screw may leadto the failure of the switch. 4. After the installation, please press the lever of the switch several times to check. If there is no click sound, turn the adjusting screw counterclockwise until there is click sound. 5. The adjustment screw of lacquer seal is only used for the first time to adjust the state of switch. Please do not change or adjust it. 6. Observe three operating cycles to ensure that the switch and the system to which it is connected are operating properly and cover the switch enclosure promptly. Note: 1. Please check the switch carefully before installation. 2. switch can be installed in horizontal pipeline or vertical pipeline with upward liquid direction, but not in pipeline with downward liquid direction. When installed in the pipeline with upward liquid direction, the effect should be considered. 3. HFS switch could not be used in the pipe which liquid temperature below freeing point. 4. Arrester must be installed if quick-closing valve fixed downstream.

Key Features

• ✅ DYNAMIC LIQUID MEASUREMENT: Our paddle switch is designed to accurately measure the dynamic state of liquid flowing through pipelines, suitable for water, ethylene, and other liquids that have no corrosive effect on copper. Keep track of your liquid with precision and ease
• ✅ VERSATILE APPLICATIONS: Perfect for use in water treatment systems, central air conditioning units, and water cooling systems, our paddle control switch is a versatile solution for various industries. Trust in its capabilities to meet your liquid monitoring requirements with ease and efficiency
• ✅ AUTOMATIC RATE CONTROL: When the rate exceeds the set value, the fluid activates the blade and micro switch. The SPDT contact efficiently connects one circuit while disconnecting another, allowing for seamless rate control and monitoring
• ✅ ADJUSTABLE CONTROL WITH STABLE REPEAT ACTION: Enjoy the flexibility of adjustable control with our water switch. The repeat action point remains stable, ensuring consistent and reliable operation for your liquid management needs
• ✅ AND RELIABLE PERFORMANCE: With an IP54 grade and a microswitch contact life of up to 100,000 times, our paddle water control switch is built to last. Experience lasting durability and dependable performance for your applications
