Taidacent Hollow Slip Ring Signal Power Collector Ring, 2/4/6/12 Road Conductive Electric Motor Connector

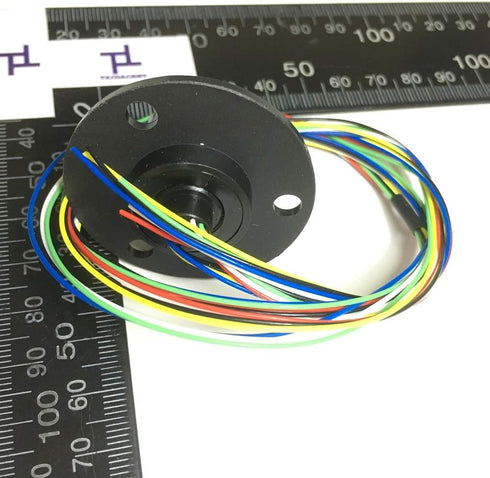

Taidacent Hollow Slip Ring Signal Power Continued 2/4/6/12 Road Collector Ring Conductive Electric Motor Slip Ring Rotating Connector (5mm Inner Diameter 22mm Outer Diameter 6 Wire 2A)

Taidacent Hollow Slip Ring Signal Power Collector Ring, 2/4/6/12 Road Conductive Electric Motor Connector

Product Name: Through Hole Slip Ring Speed: 250 rev / min Protection level: IP54 Insulation resistance: 500MQ@500VDC Working life: 5 million rpm Bearing: high precision ball bearing Wire Specifications: Please consult us Mechanical vibration: MIL-SID-810E Number of channels: 1-36 road Rated current: 10A Rated voltage: 380V Contact material: precious metal Housing Material: Engineering Plastics Torque: 0.01N.M Working temperature: -40 C ~ +80 C Relative humidity: 60% Wire length: 300mm Product features Gold-gold contact points ensure stability and service life, mainly for civil and commercial applications Smooth operation, compact structure, low torque, compatible with data bus protocol The use of colored conductors for stator and rotor lines makes circuit connections simpler The conductive ring is designed with a 90 degree angle V row groove for smooth rotation, low torque and low electrical noise. Product monolithic structure, advanced fiber brush technology, branch temple power, signal mixed transmission Life depends on the working environment and speed Application field cloud operation Electrical test equipment Manufacturing and processing control equipment Medical equipment CCTV Security Monitoring Equipment Robot Exhibition / Display Equipment Rotating table Small wind turbines Radar antenna

Key Features

• ✅ Gold-gold contact points ensure stability and service life, mainly for civil and commercial applications
• ✅ Smooth operation, compact structure, low torque, compatible with data bus protocol
• ✅ The use of colored conductors for stator and rotor lines makes circuit connections simpler
• ✅ The conductive ring is designed with a 90 degree angle V row groove for smooth rotation, low torque and low electrical noise
• ✅ Product monolithic structure, advanced fiber brush technology, branch temple power, signal mixed transmission
