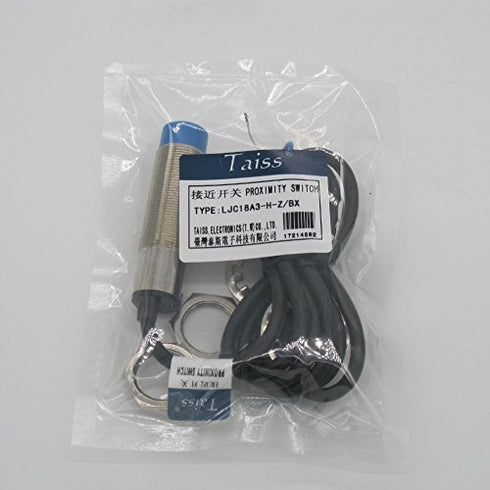

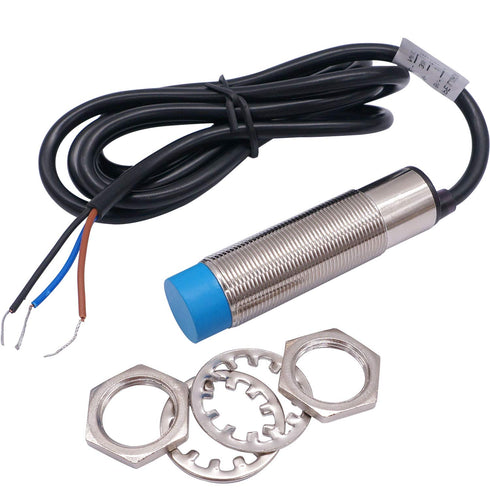

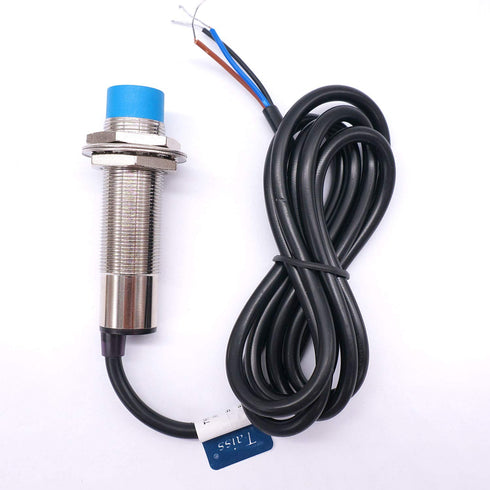

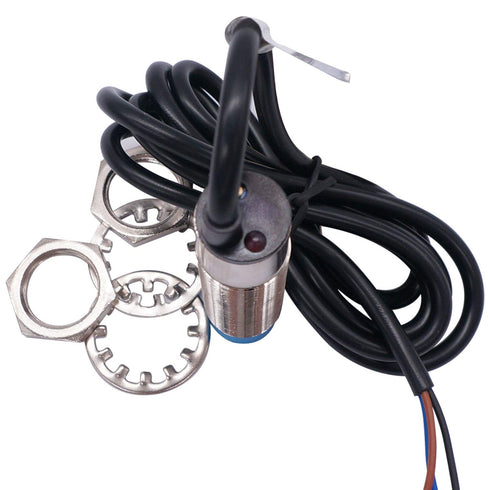

Taiss LJC18A3-H-Z/BX Proximity Switch, 1-10mm NPN NO DC 6-36V 300mA M18 3-wire

Taiss LJC18A3-H-Z/BX Proximity Switch 1-10mm Sensor Switch Capacitance Proximity Sensor Switch NPN NO(Normally open) DC 6-36V 300mA M18 3-wire

Taiss LJC18A3-H-Z/BX Proximity Switch, 1-10mm NPN NO DC 6-36V 300mA M18 3-wire

It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching. When proximity switch is close to some target object, it will send out control signal. As it is capacitive type proximity switch, its detecting object target is not limited to only conductor, but also liquid and even powder things, like plastic, water, glass, oil, etc. It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect. Product Name : Capacitive Proximity Switch;Switch Appearance Type : Cylinder Type Theory : Capacitance Sensor;Output Type : NPN NO(Normal Open);Diameter of Head : 18mm;Detecting Distance : 1-10mm Detecting Object : Metal or Nonmetal Material;Supply Voltage : DC 6-36V;Current Output : 300mA;Response Frequency : 100Hz Size : 7.5 x 4cm/3'' x 1.6'' (L*Max. Dia);Material : Plastic, Alloy

Key Features

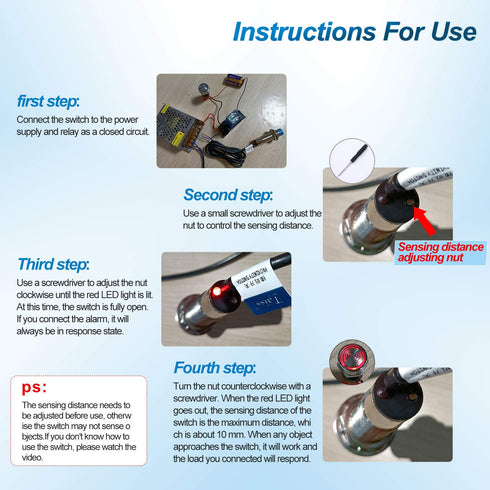

• ✅ Special attention: After the switch is installed, the sensing distance needs to be adjusted, otherwise, there will be no response when the switch is turned on.There are two friends recently. The reaction product does not work, First note: our products are 100 % tested before they leave the factory. Solution: 1. Turn Switch control sensing distance behind the product; 2 .Send us an email and we will send you a new one.

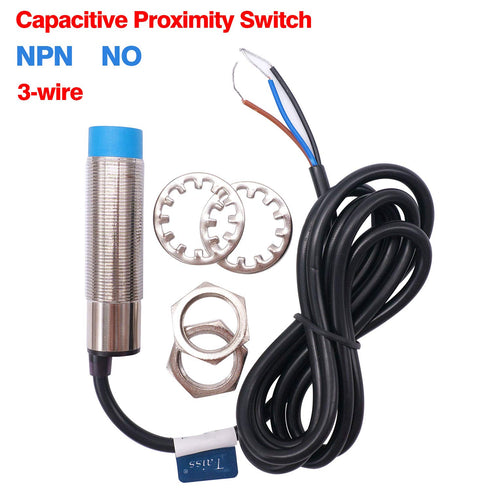

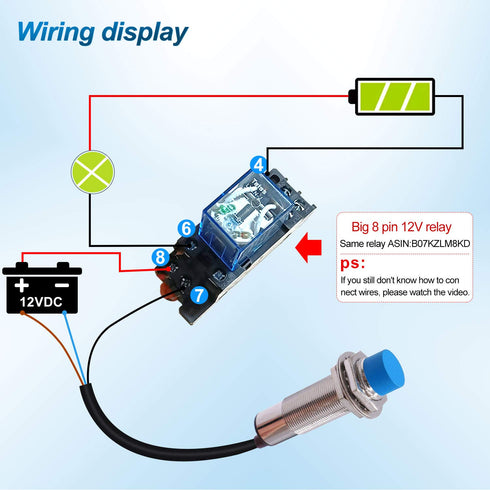

• ✅ Product Name : Capacitive Proximity Switch; Model : LJC18A3-H-Z/BX;Wire Type : DC 3 Wire Type (Brown, Black, Blue);Theory : Capacitance Sensor; Output Type : NPN NO(Normal Open);Diameter of Head : 16mm; Thread Diameter:18mm; Detecting Distance : 1-10mm
• ✅ Operating Temperature : -25 to +65 Celsius (Non-freezing Condition);Size : 7.5 x 3cm / 3"x 1.2"(L*Max. Dia);Cable Length : 120cm/47";External Material : Plastic, Alloy
• ✅ Detecting Object : Metal or Nonmetal Material; Supply Voltage : DC 6-36V;Current Output : 300mA;Response Frequency : 100Hz
• ✅ Net Weight : 85g;Color : Silver Tone, blue, Gray; Package Content : 1 x Capacitive Proximity Switch
