Timer Control Relay, Adjustable Cycle Time Delay Switch Module for Automotive and Lamp Accessory Applications

Timer Control Relay, 3V 3.7V 4.5v 5v 6v 7.4V Adjustable Cycle Time Delay Switch Module for Automotive and Lamp Accessory Applications

Timer Control Relay, Adjustable Cycle Time Delay Switch Module for Automotive and Lamp Accessory Applications

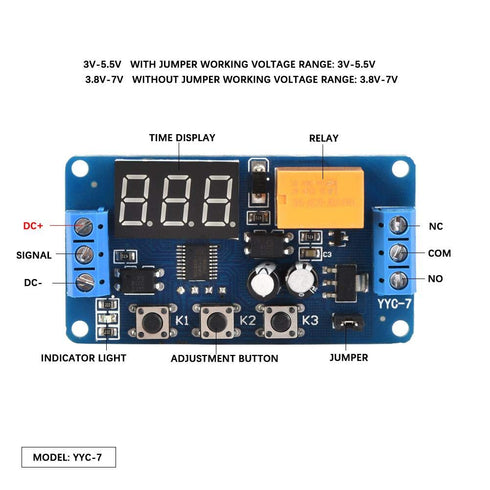

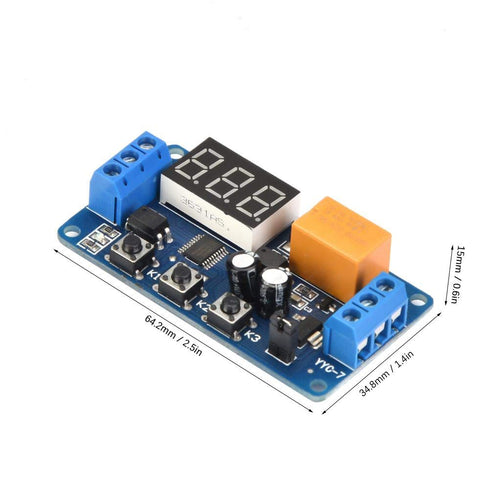

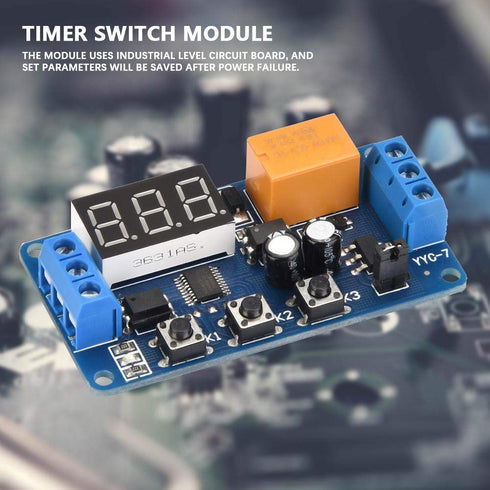

Features: This time delay relay can be powered with low voltage, minimum to 3V. Commonly-used 3.7V lithium batteries, 5V power banks, switching power supply can be used to power this board. Widely used to control motors, light bulbs, LED belts, DC motor, small pumps, etc. Output optical coupling isolation improves anti-interference ability. The module uses industrial level circuit board, and set parameters will be saved after power failure. Specification: Working current: DC 3V~7V Voltage range with jumper: 3 V~5.5V Voltage range without jumper: 3.8V~7V source: DC 3V~12V (commonly use power supply positive trigger, button, PNP sensor, PLC , etc.) Output capacity: Can control equipment within DC 30V3A or AC 220V3A Quiescent current: 15mA Working current: 30mA Service life: >100,000 times Operating temperature: -40~85 Size: 64.2*34.8*15mm / 2.5*1.4*0.6in Weight: 22g / 0.8oz (approx.) Package list: 1 * Module

Key Features

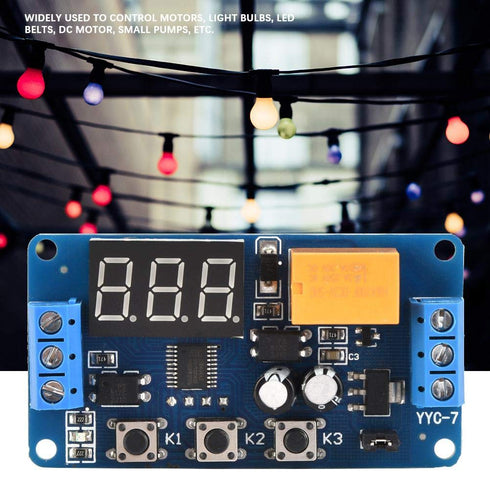

• ✅ Application - Widely used to control motors, light bulbs, LED belts, DC motors, small pumps, etc.
• ✅ Multiple Power Supply Methods - Commonly used 3.7V lithium batteries, 5V power banks, and a switching power supply can be used to power this board.
• ✅ Function of the relay module - This delay relay can be operated with a low voltage of at least 3 V. The optical coupling isolation at the output improves the interference suppression capability. The module uses an industrial circuit board and the set parameters are saved after a power failure.
• ✅ Specification - Working current: DC 3V ~ 7V, voltage range with jumper: 3 V ~ 5.5 V, voltage range, without jumper: 3.8 V ~ 7 V, source: DC 3V ~ 12V (normally positive trigger of the power supply, button, Use PNP sensor, PLC , etc.), output capacity: can control devices within DC 30V3A or AC 220V3A, quiescent current: 15mA, working current: 30mA
• ✅ Quality Assurance - The quality of our products is guaranteed and can be used without hesitation. If you have any questions during use, please feel to contact us.

✅ Product Dimensions: 2.56 x 1.38 x 0.59 inches; 0.71 ounces
