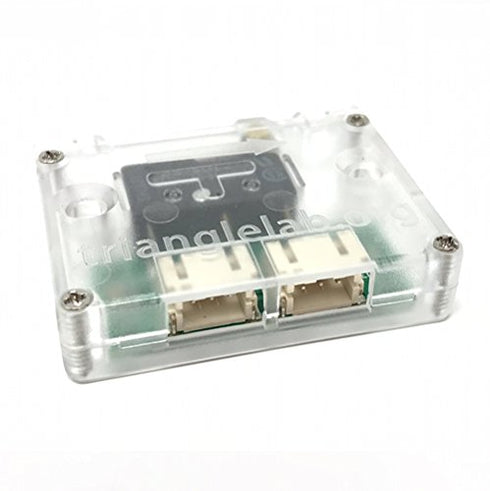

TriangleLab 1.75mm Filament Runout Sensor Detector for 3D Printer

TriangleLab Filament Runout Sensor Detector for 3D Printer 1.75mm Filament

TriangleLab 1.75mm Filament Runout Sensor Detector for 3D Printer

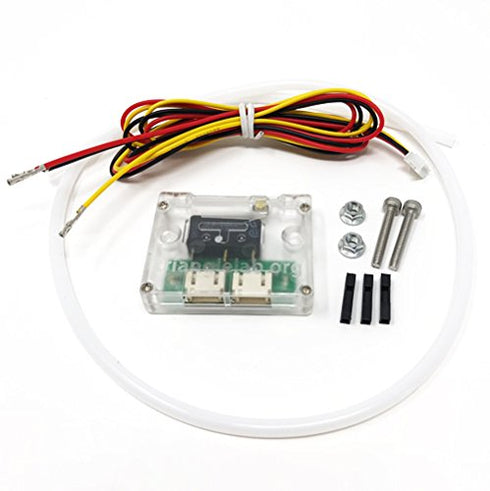

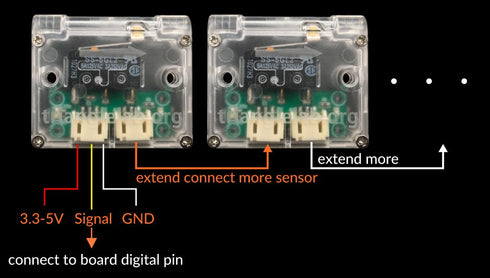

Product Features Kit includes: 1pc Runout Sensor 1pc 3pin Cable 3pc Cable Connectors 2pcs Screws w/ nuts 1pc PTFE Tube Product Description This filament runout sensor is designed for detect whether your filament is run out during the printing process. The sensor will send the signal to the printer when the filament is run out and printer will pause the print job until the new filament is loaded when the printer w/ correct firmware and setting. Supply Voltage: 3.5-5V Filament : 1.75mm Size: 37mm x 44mm x 10.6mm Installation: Please install the unit after the spool and before your extruder. Fix it on your printer and along with the path of filament is recommend. Pay attention to the direction indicated by the arrow on the body. Inserted the 4mm PTFE tube to both side of the unit for guiding the filament and help to reduce the friction. Wiring: Locate the Primary Cable (see pictures for identification) and connect to the Filament Run-Out Sensor connector. The wiring has the following identification: Red Wire - 3.3-VDC to 5-VDC (supply power) Yel/Blue - Signal Wire Black Wire - Ground Connections: Servo pins always have the right connections: Power, Signal and Ground. Most End-Stop pins will have the same 3 pins, and sometimes only Signal and Ground. If you only have these two in an end-stop connector there should be somewhere on the main board for Supply Voltage. In theory you can chose any input pins on your main board for signal.

Key Features

• ✅ This filament runout sensor is designed for detect whether your filament is run out during the printing process.
• ✅ The sensor will send the signal to the printer when the filament is run out and printer will pause the print job until the new filament is loaded when the printer w/ correct firmware and setting.
• ✅ 1pc Runout Sensor, 1pc 3pin Cable, 3pc Cable Connectors, 2pcs Screws w/ nuts, 1pc PTFE Tube
