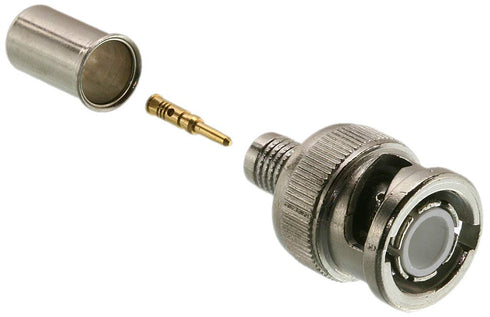

Triplett GEM BNC Crimp Connectors, Male, 50-Ohm, 10 Pack for RG58 (305-1TP)

Triplett GEM BNC Crimp/Crimp Connectors for RG58, Male, 50-Ohm, 10 Pack (305-1TP)

Triplett GEM BNC Crimp Connectors, Male, 50-Ohm, 10 Pack for RG58 (305-1TP)

The gem electronics 305-1TP BNC crimp-crimp connector is designed for RG58 connections. Featuring a bright Nickel finish, The connector utilizes captive, self-energizing gold-plated center contact for a solid connection. Gem BNC crimp-crimp connectors are used for higher frequency applications up to 1GHz because the center contact is more closely matched to the center conductor of the cable. The crimped center contact provides a lower VSWR (voltage standing Wave ratio) at higher frequencies (use a 75-Ohm connector above 1GHz). also used for cables with a flexible stranded center conductor. Perfect for CCTV, HD-TVI, CVI, AHD and IP over coax, with a 50 Ohm impedance and 20 AWG, .195 - .210 jacket O.D. (Pack of 10)

Key Features

• ✅ Utilizes captive, self-energizing gold-plated center contact for a solid connection
• ✅ 20 AWG, .195 - .210 jacket O.D.
• ✅ Designed for higher frequency applications (up to 1Ghz) because the center contact is more closely matched to the center conductor of the cable
• ✅ Crimped center contact provides a lower VSWR at higher frequencies (use a 75-ohm connector above 1Ghz); also used for cables with a flexible stranded center conductor
• ✅ For proper installation, use Triplett gem gst-4 wire stripper and get-305-58596 Crimp tool (Each sold separately)

✅ Product Dimensions: 4.25 x 0.5 x 7.5 inches; 3.21 ounces
