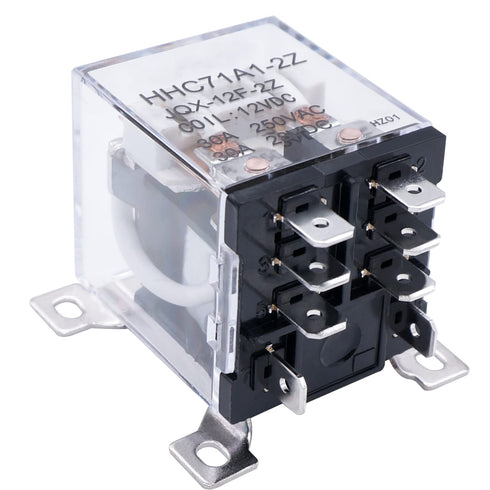

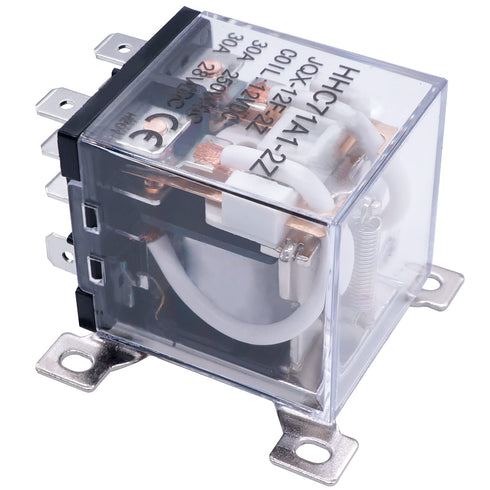

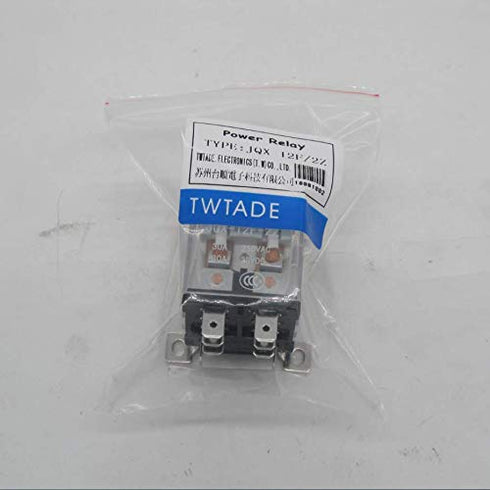

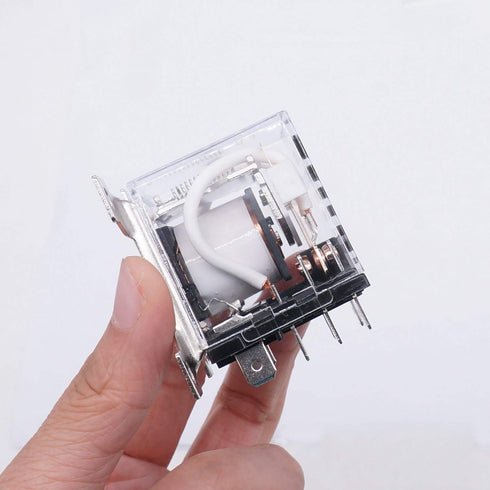

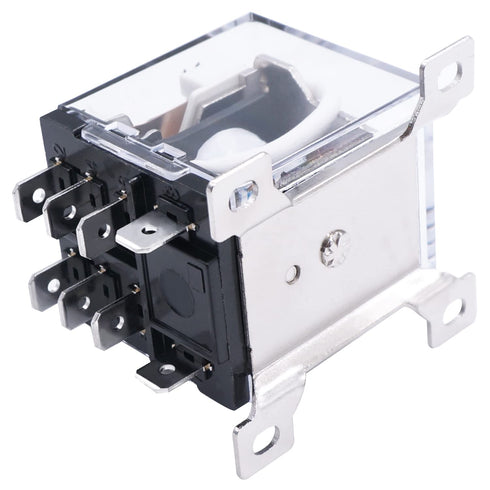

TWTADE/JQX-12F-2Z 30A DPDT 2NO+2NC General Purpose High Power Relay DC 24V Coil Voltage 8 Pin

TWTADE/JQX-12F-2Z DC 24V Coil Voltage 30A DPDT 2NO+2NC General Purpose High Power Relay 8 Pin (Quality assurance for 1 years)

TWTADE/JQX-12F-2Z 30A DPDT 2NO+2NC General Purpose High Power Relay DC 24V Coil Voltage 8 Pin

About us Our company's principle is "service first, quality first". Our products include relays, potentiometers, rocker switches, tactile switches, toggle switches, selector switches, emergency stop switches, limit switches, push button switches, thermocouples, counters, etc. Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Wiring description For example: 1,3,5 This contact, 3 and 5 are normally open, 1 and 5 are normally closed; Body Size(not included pin) : 3.5 x 3.3 x 4cm / 1.4" x 1.3" x 1.6" (L * W * T); Installing Hole Size : 0.48 x 0.35cm / 0.19"x 0.14"(L*W); Installing Hole Distance(center) : 3.85 x 3.78cm / 1.52" x 1.49"(L*W)

Key Features

• ✅ Product Name : Power Relay;Model : JQX-12F-2Z; Contact : DPDT 2NO+2NC
• ✅ Wiring description For example: 1,3,5 This contact, 3 and 5 are normally open, 1 and 5 are normally closed;Pin Number : 8; Coil Voltage : DC 24V; Contact : 30A 250V AC / 28V DC
• ✅ Body Size(not included pin) : 3.5 x 3.3 x 4cm / 1.4" x 1.3" x 1.6" (L * W * T);Total Height : 4.8cm / 1.6";Installing Hole Size : 0.48 x 0.35cm / 0.19"x 0.14"(L*W)
• ✅ Installing Hole Distance(center) : 3.85 x 3.78cm / 1.52" x 1.49"(L*W);Material : Plastic, Metal;Color : See the Picture
• ✅ Weight : 93g;Package Content : 1 x Power Relay
