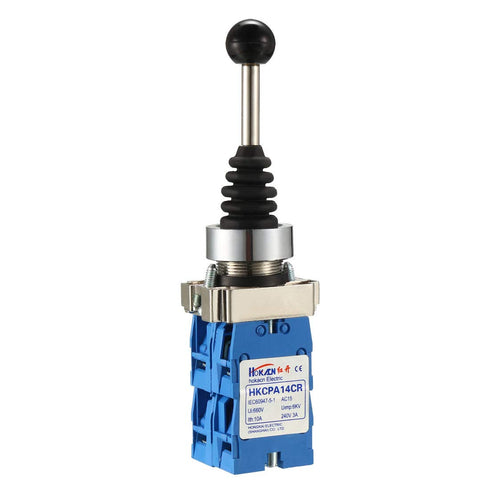

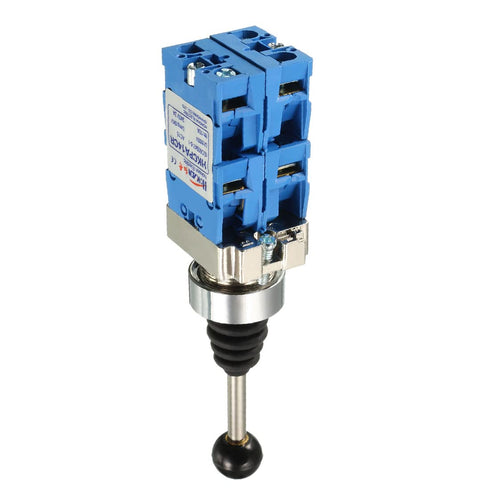

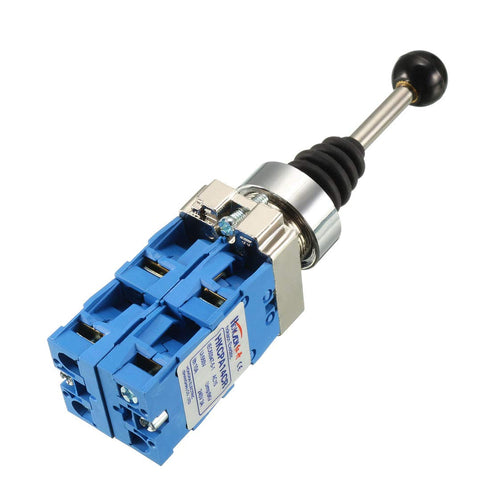

uxcell 4 Position Joystick Switch Controllers 4NO Latching Type 150V/250V/600V 22mm Panel Mount

uxcell Joystick Switch Controllers 4 Position 4NO Latching Type 150V/250V/600V 22mm Panel Mount

uxcell 4 Position Joystick Switch Controllers 4NO Latching Type 150V/250V/600V 22mm Panel Mount

Description: -Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment. - controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand. -They are ideal for raising, lowering and triggering movements to the right and left. -This 22mm selector switch is modularly designed to make assembly. -Rubber bushing is oil-resistant and dust-preventive. -Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology. Specification: Rated Voltage: 150V / 250V / 600V Rated Current: 15A / 10A / 4A Insulation Voltage (Ui): 660V Heating Current (Ith): 10A Action Type: Latching Positions: 4 Contacts Type: 1 NO Contact Per Direction Terminals Type: Screw Clamps Terminals Panel Mounting Diameter: 22mm / 7/8" Overall Size: 144 x 40 x 30mm / 5.67" x 1.57" x 1.18" (L*W*H) Joystick Length: 78mm / 3.07"

Key Features

• ✅ Operate at 4 directions, with the 30 degrees declination of operation handle
• ✅ Latching type operation with 1 normally open contact per direction
• ✅ Rated Voltage: 150V / 250V / 600V; Rated Current: 15A / 10A / 4A
• ✅ Simply drill an 22mm (7/8") hole and secure it with the screw ring
• ✅ Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc
