Waveshare 2.23inch OLED Display HAT for Raspberry Pi 12832 Pixels with Embedded 1305 Driver Communicating via SPI or I2C Interface.
waveshare 2.23inch 12832 1305 Communicating I2C OLED Display HAT for Raspberry Pi Pixels with Embedded Driver via SPI

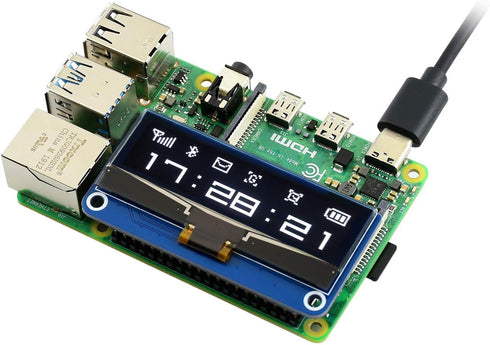

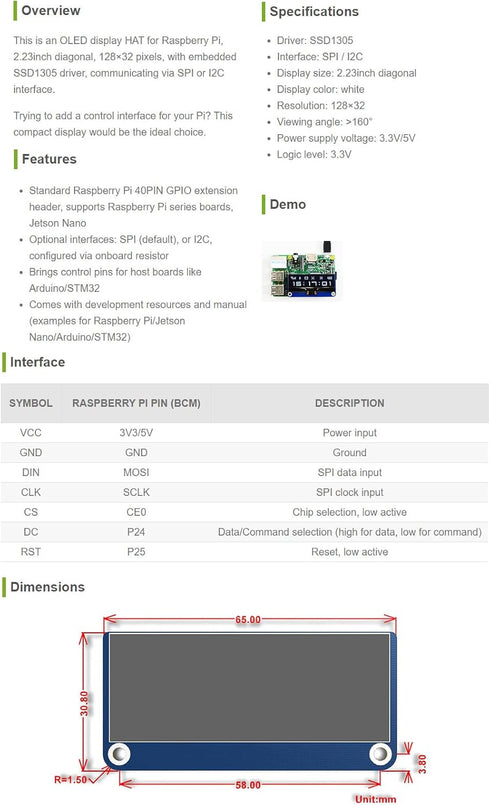

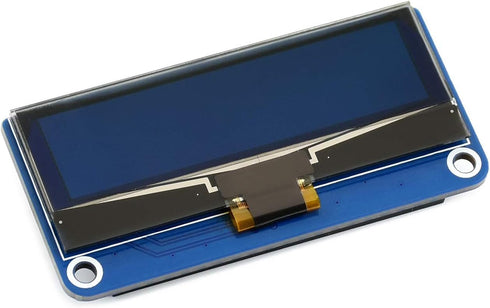

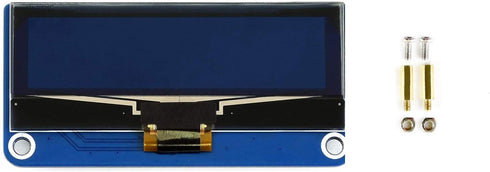

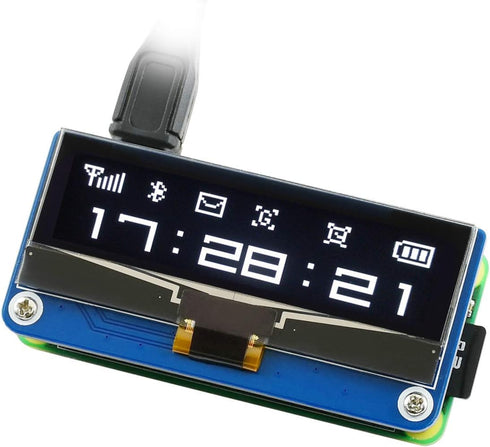

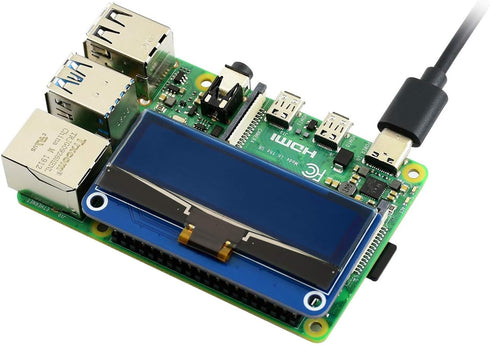

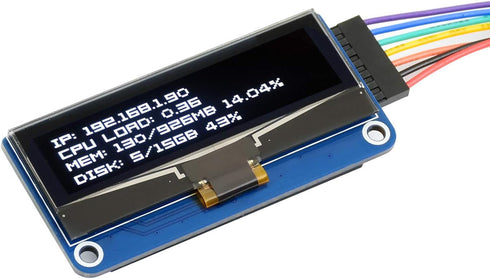

Overview This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 12832 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Optional interfaces: SPI (default), or I2C, configured via onboard resistor Brings control pins for host boards like Arduino/STM32. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32). Specifications: Driver: SSD1305. Interface: SPI / I2C. Display size: 2.23 inch diagonal Display colour: white. Resolution: 128 x 32. Viewing angle: >160. Power supply voltage: 3.3 V/5 V. Logic level: 3.3 V. Wiki: www.waveshare.com/wiki/2.23inch_OLED_HAT?Amazon PACKAGE CONTENT 2.23 inch OLED HAT x1 RPi screws pack (2 pieces) x1
Brand: waveshare
raspberry 12832, industrial scientific, oled, spi i2c, waveshare 23inch, via, waveshare, 12832, i2c interface, scientific, display, hat Industrial & Scientific Industrial Electrical Optoelectronic Products Optoelectronic Displays LCD Graphic Displays
Key Features
- ✓ This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 12832 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.
- ✓ Trying to add a control interface for your Pi? This compact display would be the ideal choice.
- ✓ Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- ✓ Optional interfaces: SPI (default), or I2C, configured via onboard resistor Brings control pins for host boards like Arduino/STM32
- ✓ Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Product Details
- ✓ Package Dimensions: 2.83 x 1.97 x 0.94 inches
- ✓ Item Weight: 0.705 ounces
