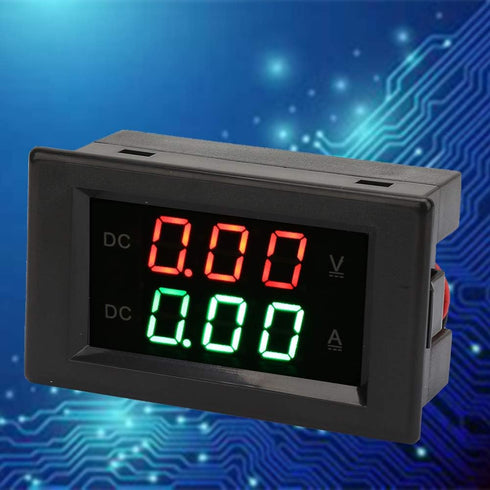

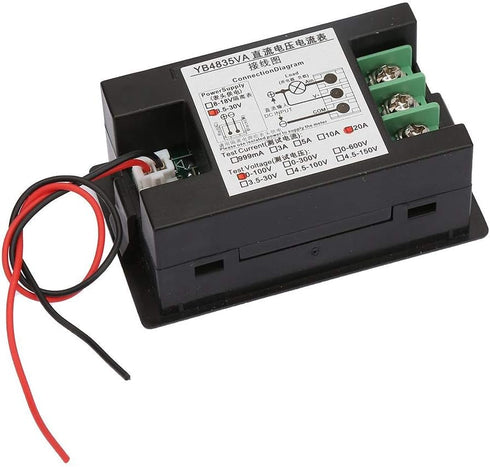

YB4835VA Ampere Meter DC0~100V 20A Dual Display Integrated Voltage Ampere Meter for Battery Monitoring

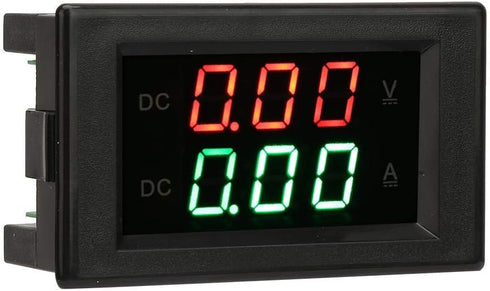

Ampere Meter, YB4835VA DC0~100V 20A Dual Display Integrated Voltage Ampere Meter Used to Monitor The Voltage of The Battery

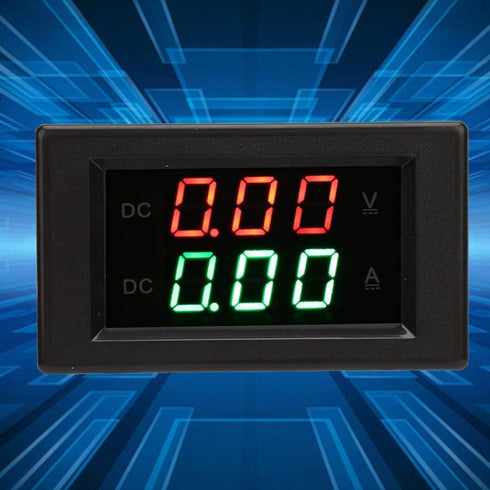

YB4835VA Ampere Meter DC0~100V 20A Dual Display Integrated Voltage Ampere Meter for Battery Monitoring

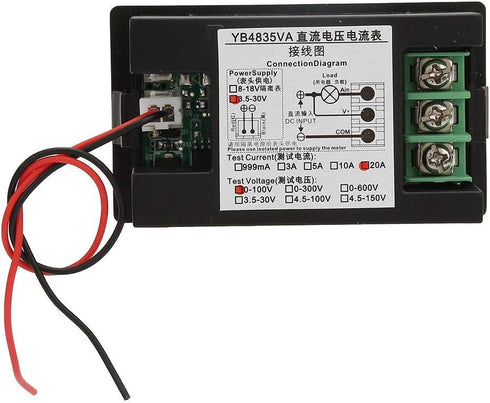

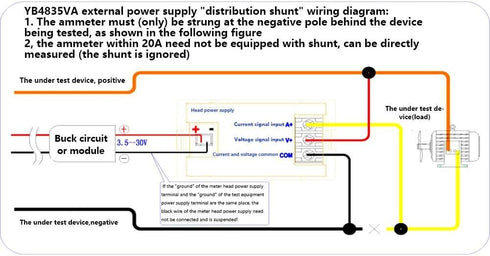

Note: Connection method: This meter is equipped with five lines, please find professionals strictly according to the following wiring diagram: Meter head power supply: two-wire socket Fine _ black line: meter head power supply Fine _ red line: power supply to watch head is positive (note, the voltage between fine red and black line cannot exceed 30V) Isolation meter (isolated power supply): The meter head power supply end and the test end are completely insulated and isolated from each other, can share one power source in multiple meters, "no need" is worried about all kinds of interference problems caused by sharing the power supply, suitable for the factory aging test stand, test stand, or other equipment requiring more than one meter head Power supply voltage: DC8-18V Test end: COM: Test Common End V +: Test positive voltage input A +: Test "positive" current input end;Because the meter head adopts the common ground design, that is, the ground wire at the measuring end is connected with the ground wire at the power supply end, so it can only be connected between the negative and the negative power supply of the equipment under test, as shown in the following figure, the connection error will burn, (if only do voltmeter use, it is recommended to connect the yellow line with the black line, Prevent the digital flicker of ammeter caused by external interference) Non-shunt _ connection method: suitable for "below 20A" without external connection. Walfront is committed to product sales on the Amazon platform, developing overseas markets, focusing on customer needs, independently developing new products, and providing personalized shopping experience. We are committed to providing you with more comprehensive, safer and more practical products that can solve problems. From simple circuit boards to household switches, from household appliances to industrial electronics, from hand tools to electrical components, we provide you with items that are not readily available in supermarket hardware stores. Our team has been learning new technologies, optimizing production processes, and bringing you more and better products.

Key Features

• ✅ CONVENIENCE: With a superb SMT process, it is small in size. It can display voltage and current on the same screen for convenient use.
• ✅ DESIGN: The decimal point is automatically moved and designed with a full enclosure with a back cover for safe, reliable and dustproof.
• ✅ WIDE POWER RANGE: DC 3.5~30V (except for the isolation table). Please note that the voltage between the thin red and black lines cannot exceed 30V.
• ✅ WIRING: The wiring is convenient, and the grounding wire of the measuring end is interconnected with the grounding wire of the power supply terminal (except for the isolation table).
• ✅ APPLICATION: It is used to monitor the battery voltage, keep abreast of the battery voltage status, and can also be used for voltage and current measurement of other products.

✅ Product Dimensions: 3.54 x 1.97 x 1.18 inches

✅ Color: Black
