ZABLL 3.7V 12V 5V 433Mhz DC - Mini Size Relay Remote Control Switch, Wireless RF Momentary Switch with Delay Function

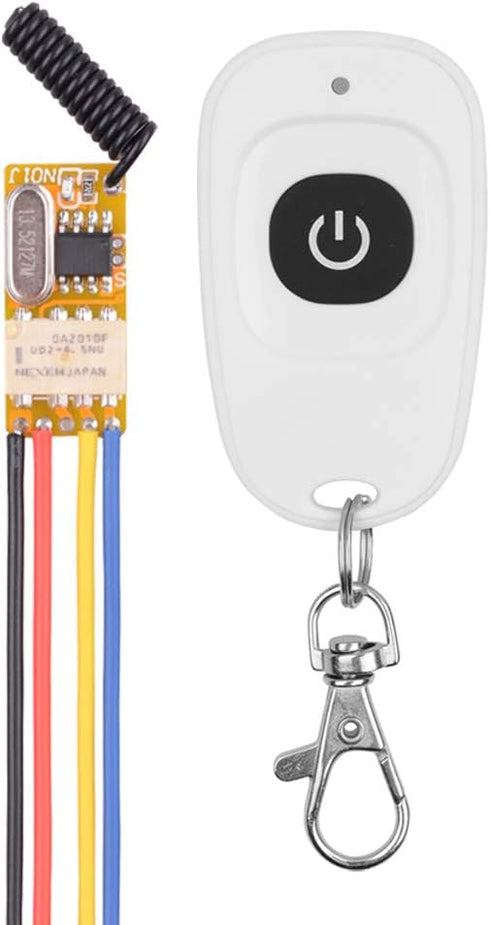

DC 3.7V - 12V 5V Mini Size Relay Remote Control Switch, 433Mhz Wireless RF Momentary Switch with Delay Function, Transmitter and Receiver for Wireless Control

ZABLL 3.7V 12V 5V 433Mhz DC - Mini Size Relay Remote Control Switch, Wireless RF Momentary Switch with Delay Function

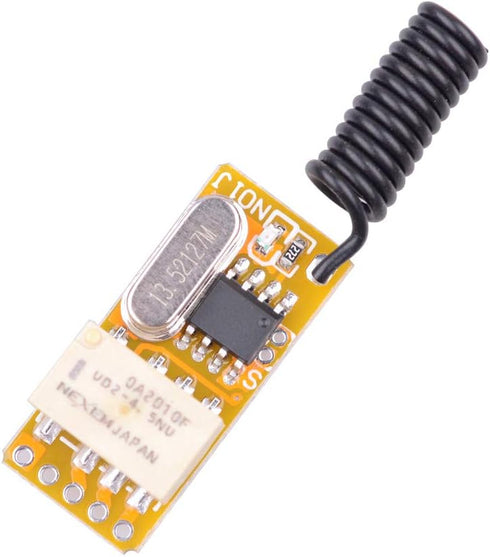

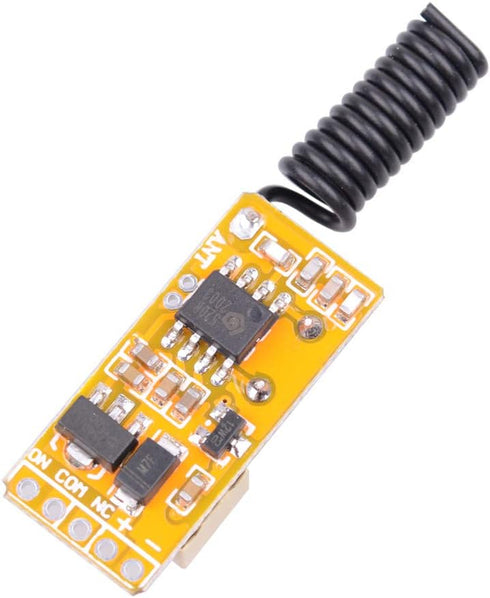

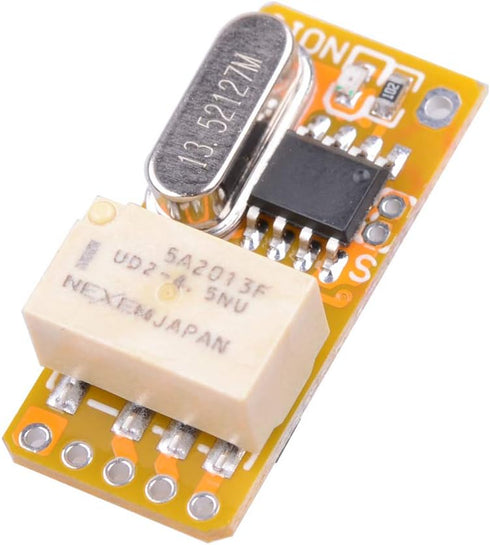

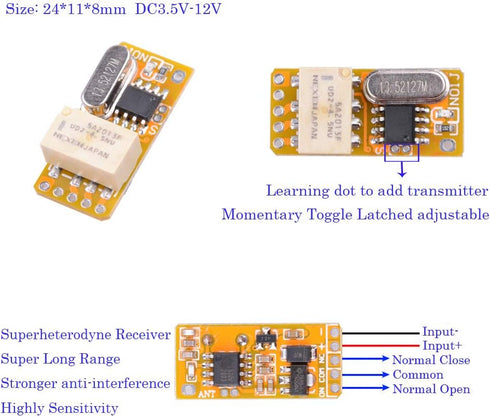

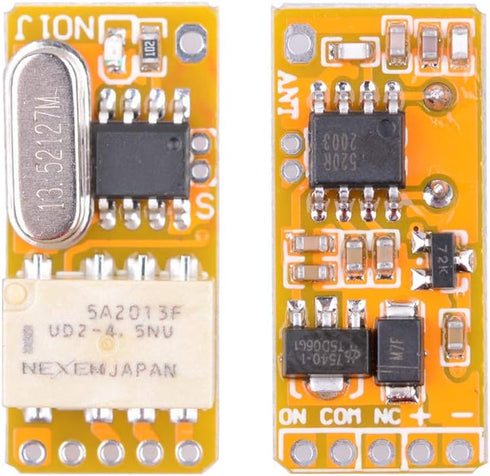

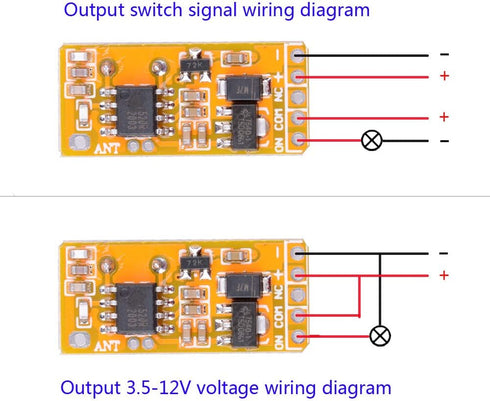

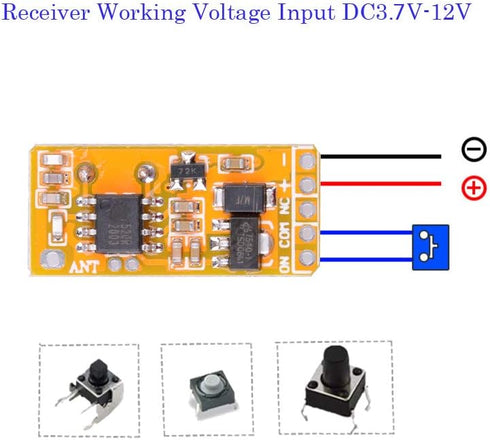

Please note: This product is intended for adults aged 18 and older only. This product is an ultra-small mini remote switch. This is a safe widely used and flexible remote relay. Receiver parameters : Model number: NO1J frequency: 433Mhz Working Voltage: DC3.5V-DC12V Wide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12V Max Load: 1A (have better Load less than 700ma) Quiescent Current: 5ma Relay Working Current: 30ma Size: 25*11*8mm Working Mode: Momentary. Toggle .Latched ,Delay time 10S adjustable.you can change working model by yourself. (Notice: we send Momentary mode default . Encoding Type: Learning point to add extra transmitter Normally Open Port (NO) Common Port (COM) Normally Close Port (NC) Input DC3.5V-DC12V Output 0V Switching Value Momentary---Press and hold relay On; Release relay Off.(one channel switch need one button remote) Toggle----Press relay On; Press same button again relay Off .(one channel switch need one button remote) Latched----Press relay On; Press other button relay Off . ( one channel switch need 2 buttons remote ) Delay time : Press remote control button, the corresponding relay actuates and keeps working until the time out. Learning methodInput 12V for the Receiver , Connect the Learning Dot, The receiver Led indicator ON. Press remote button A 1 time, Led indicator flash for 1 times , Then Press remote button B 1 time , Led indicator flash for 1 times again , it mean learning successfully Clearing Code: Connect the Learning Dot and hold on . Until the receiver Led indicator flash for 6 times, it mean Clearing code successfully Remote control parameters: frequency: 433Mhz Working current: 12mA Transmission Distance: 10-50 Meters Package Include: 1 x Receiver(without cover) 1x Transmitter

Brand: ZABLL

improvement, delay function, control tools, wireless control, receiver, momentary switch, control switch, switch 433mhz, 433mhz, building supplies, momentary, transmitter receiver Tools & Home Improvement Building Supplies Building Materials Doors Garage Doors, Openers & Parts

Key Features

• it is a small size and easy installation. high sensitivity, with flexible control five working model for choose,It adopts non-directional wireless encoding technology, allowing independent control without mutual interference.
• easy to use : We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.
• the RF remote control adopts RF technology, stable signal. Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 50 meters with no obstacle.
• it is mainly used in swtich lamps, relays, remote controller, circuit boards,trumpet, power switch,home wireless control and security industry and battery powered on/off for small devices, etc. and other fields.

Product Details

• Package Dimensions: 5.28 x 2.99 x 0.47 inches
• Item Weight: 1.13 ounces
