Zipbolt 11.560 Angled Railbolt - Angled Staircase Handrail to Newel Post Connector for Residential and Commercial

Zipbolt 11.560 Angled Railbolt — Angled Staircase Handrail to Newel Post Connector for Lower Connection, Residential and Commercial Installation, New Construction and Remodels — 1 Double Pack

Zipbolt 11.560 Angled Railbolt - Angled Staircase Handrail to Newel Post Connector for Residential and Commercial

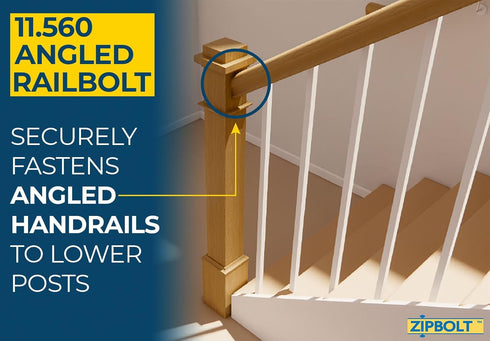

Visit the Store Visit the Store Zipbolt's Angled Railbolt is the fastest and easiest way to join your handrail's lower connection to a newel post, while remaining hidden and maintaining the strength of traditional old style rail bolts. Gone are the days of trying to start a nut in a restrictive location, which is further compounded by having to tighten it afterwards. The Angled Railbolt's gear-driven system provides unbeatable speed when joining staircase components together. Specifically designed for joining a handrail to a newel post at the downstairs joint, the adjustable shaft is pre-installed into the newel post before being inserted into the angled handrail. Once the connection is made, the Zipbolt gear-driven system tightens the assembly using the included 5mm hex bit and provides the user with a strong connection that was joined in a fraction of the time it takes to connect staircase components using standard rail bolts. After prep work, install the angled railbolt's screw shaft into the post. Insert the other end of the angled rail bolt inside the handrail. Insert the gear-driven housing into the opening and cover threads. Tighten the housing over the threads with the supplied hex bit using a cordless screwdriver. NOTE: Do not use impact driver to tighten gear housing.

Key Features

• ✅ EASILY CONNECT ANGLED HANDRAILS TO NEWEL POSTS – Perfect for stairway post joints, this angled railbolt kit adjusts to the ideal angle to perfectly align the lower connection of an angled handrail to a newel post.
• ✅ FAST INSTALLATION – Attaching handrails to fittings is no longer a tedious, time consuming process. Wax and screw the railbolt into the reamed newel post, place the housing gear inside the railing, and tighten the gear with the included 5mm hex bit using a screwdriver or cordless drill. NOTE: Impact drivers should not be used when tightening the gear housing.

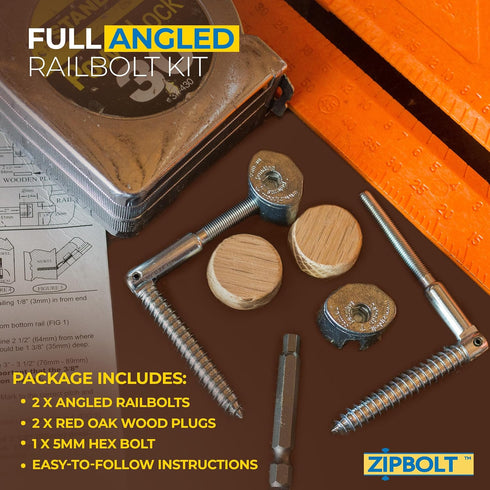

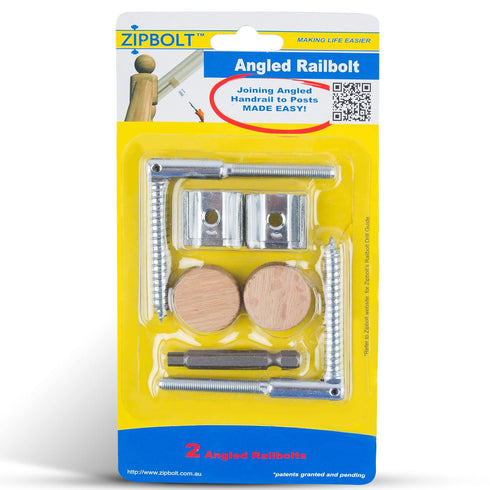

• ✅ A COMPLETE PACKAGE – The package includes everything you need to attach an angled handrail lower connection to a fixed stairway post. It contains 2 angled rail bolts, 2 red oak wood plugs, and 1 hex bit (5mm). Use the instructions on the packaging to guide yourself through the installation process.
• ✅ DURABLE CONSTRUCTION – Made with quality steel for maximum durability, these Zipbolts incorporate a double knuckle joint with a hardened pin. Created by professionals for residential and commercial use, they provide a solid and stable connection without the frustration of traditional methods.
• ✅ INNOVATIVE PATENTED DESIGN – Zipbolt offers a distinctive patented gear drive that outperforms all others in terms of functionality. The innovative UT gear-driven mechanism eliminates the issues associated with conventional techniques of joining stair newels to rails. The railbolt housing's distinctive open channel allows the housing to be dropped directly on the shaft, eliminating the need for nuts and washers.

✅ Product Dimensions: 7 x 4 x 1 inches; 4.94 ounces
