Zooz Z-Wave MultiRelay ZEN16 800LR for Garage Doors, Sprinklers, Gas Fireplace; 3 Dry Contact Relays

Zooz Z-Wave Long Range MultiRelay ZEN16 800LR for Garage Doors, Sprinklers, Gas Fireplace; 3 Dry Contact Relays (15A, 15A, 20A); 12-24 V AC/DC or USB C Power; Signal Repeater; Hub Required

Zooz Z-Wave MultiRelay ZEN16 800LR for Garage Doors, Sprinklers, Gas Fireplace; 3 Dry Contact Relays

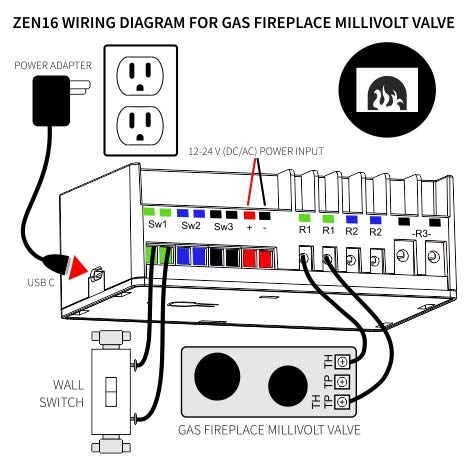

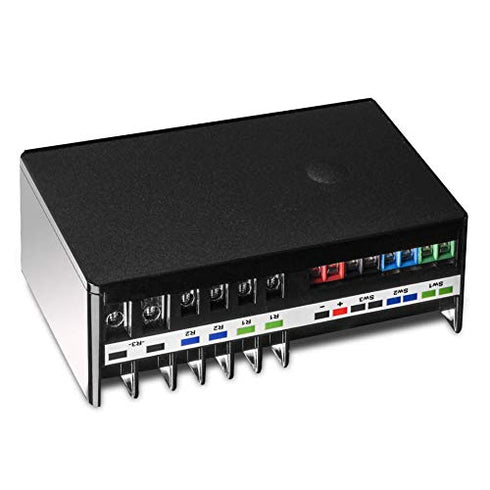

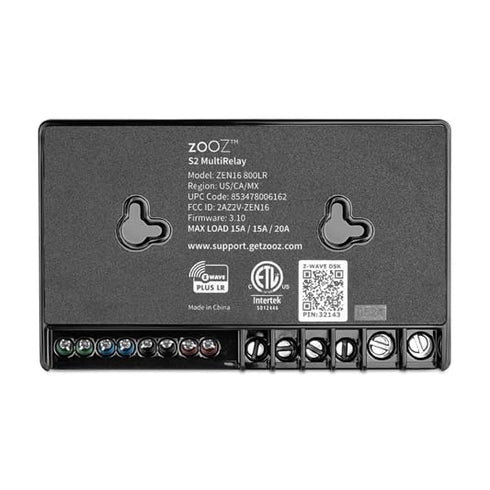

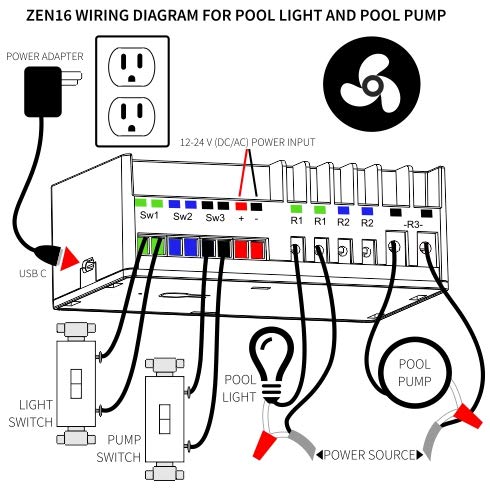

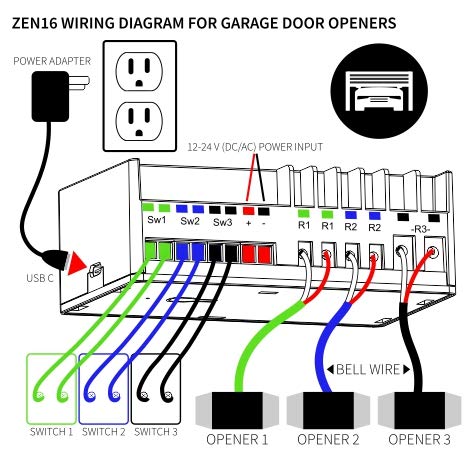

The Zooz MultiRelay combines two 15 A relays and one 20 A relay, all dry contact so you decide if you connect a low Voltage or high Voltage device on the output side. The relays accept load running on 0 to 240 V. This device is the answer if you want to control 3 garage doors or zones for your sprinkler or landscape lighting system with a single unit. Zooz created dedicated apps for SmartThings and Hubitat hubs that make this versatile device more intuitive to use in specific use cases. Got to their support portal for more information. How the switch inputs work The switch inputs on the MultiRelay are fixed to the relay outputs and accept dry contact connections only. That means you're not able to separate input monitoring from output control on this model. You cannot apply any Voltage to the switch / input side either. If you need this functionality, look for the Zooz Universal Relay ZEN17 model. Each load can run on its own power source, independent of the other relays and the MultiRelay device itself. Refer to the diagrams in the manual and Zooz support portal when wiring your MultiRelay. Use simple on/off or momentary switches only. Never connect any Voltage to the Switch input terminals on your MultiRelay. Your MultiRelay can be powered by either 12-24 V or a USB C plug (power supply is not included but the device comes with a USB cable). In both cases you’ll need a standard 1 A power adapter to plug into a standard 120 V receptacle or power source. Do NOT power the device with laptop / tablet chargers, they need a large load to activate. Do NOT use power banks or batteries to power the MultiRelay. Automate your sprinkler system with ease and be smarter about watering your grass. Use the MultiRelay to schedule and manage up to 3 zones with a single device. Simply add the MultiRelay to your Z-Wave system and it will create 4 entities: 1 master for control and monitoring of all 3 outputs and 3 child devices for individual control of each valve. Once you’ve included the MultiRelay to your hub, let the fun begin! Turn the relays on or off to open and close your sprinkler valves. Set your preferred schedules and create even more advanced rules based on the weather forecast or humidity readings from your smart sensors. Trigger the sprinklers based on motion detection. You can even add a moisture sensor as a trigger to shut your sprinklers off when it starts raining. (Hub and sensors sold separately). Try out our dedicated SmartApps for SmartThings and Hubitat for the most simple and intuitive use of your MultiRelay as a sprinkler controller. Want to control your gas fireplace from your smart speaker? Just add the MultiRelay to your Z-Wave hub if it's already integrated with your smart speaker and ask it to turn on the fireplace when it gets a little chilly. Never operate a heating source remotely without being present on site due to possible fire hazards. Always follow your local regulations when installing remote control devices for electrical and heating products. Add Z-Wave to your garage door opener and control up to 3 doors with just one MultiRelay. For intuitive control, Zooz created custom SmartApps for SmartThings and Hubitat so you can use the device as a true smart garage door controller. You’ll need a Z-Wave door sensor to monitor the open/close status of your door. Hubs and sensors sold separately. Automate your pool pump, pool lights, and the blower, all with a single MultiRelay. You'll be able to add the MultiRelay to your set-up easily if you already have a way to control your pool pump and light from a wall switch. Zooz support offers wiring and programming guidance for unusual scenarios 7 days a week. Adding Z-Wave to your low-voltage landscape lights is a great way to save energy and time. Automate up to 3 zones of your landscape lights and set them on a daily schedule. Base your schedule on sunset and sunrise or simply turn them on and off based on a timer, whatever your preference may be!

Key Features

• ✅ 3 RELAYS IN 1: Control 3 dry contact relays independently with one MultiRelay. Connect an optional wall switch for manual on/off control (dry contact only, NO voltage on the input side) or use your Z-Wave hub (required, sold separately) for wireless control and automation. Your smart speaker is NOT a Z-Wave hub. Does NOT fully work with Wink or Z-Wave alarm panels like Ring, Vivint, or Alarm.com (R1 control only). Custom edge driver required for SmartThings, go to Zooz support page for details.
• ✅ VERSATILE APPLICATIONS: Great to automate your garage door (up to 3 doors with just 1 MultiRelay!), commercial garage doors at your business, gas fireplace, sprinklers, doorbell, landscape lights, pool pump, whole house fan, and any 1-240 V device up to 20 A.
• ✅ DIY INSTALLATION: Power it with a standard USB C cable and a 5V power supply (do NOT use USB chargers or Apple accessories) or 12-24 V AC/DC power source. Wall-mount ready. Power adapter or USB cable NOT included. Jumper wires NOT included. Do NOT power with 110 V! Do NOT apply Voltage to the input (switch) terminals!
• ✅ RELIABLE Z-WAVE: Comes with the latest S2 security and SmartStart technology. Z-Wave Long Range ready if your hub supports ZWLR for ultra fast signal and great wireless coverage. Remembers and restores on/off status after power failure. Built-in auto-on and auto-off timer available if your hub supports advanced settings. The device is ETL certified and conforms with North American safety standards.
• ✅ HUB COMPATIBILITY: This is an advanced Z-Wave device and it requires an open Z-Wave hub to display correctly. Works best with the Z-Box Hub. It was tested to work well with Hubitat, Home Assistant, and on SmartThings with a custom device driver (please go to Zooz support page for details). ADT Pulse, Vivint, Wink, and Ring all offer partial control (one relay or all at once instead of individual control for the relays, no access to settings).
